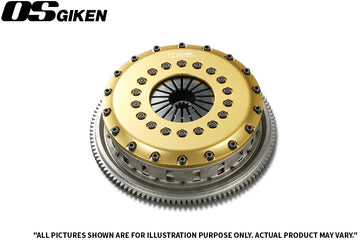

OS Giken Toyota Supra JZA80 2JZ-GTE w/ 24t Nissan Spline (Z34 Style) Hub TR Series Twin Plate Clutch

TY031-BF63

The [TR2CD] - TR Twin PlateClutch series line-up was designed for vehicles which have substantial increases in engine power. The billet aluminum cover provides a more direct clutch pedal feel, but still maintains ease of engagement due to the unique leverage mechanism of the diaphragm spring to reduce overall pedal effort.

The TR2CD was designed with high power Turbocharged engines in mind. This type of clutch caters toward the heavily modified engines. The dampened hub clutch discs are 215mm in size and are good up to about 800lbs ft of torque reliably. The aluminum cover allows for higher clamping force (increased capacity) and will handle the hard abuse often found at the track.

• Toyota Supra 1JZGTE/2JZGTE Engine - Nissan CD009 Gearbox from VQ35HR
• Clutch discs are offset to use later gen Z34 CD009 Gearbox.

Included Components:

• Twin Plate Clutch Assembly with Flywheel

Installation Notes:

• Requires Custom Hydraulic Slave Cylinder

• Please consult installation guide

• Requires OEM Pilot Bearing or Bushing
