PED-7861

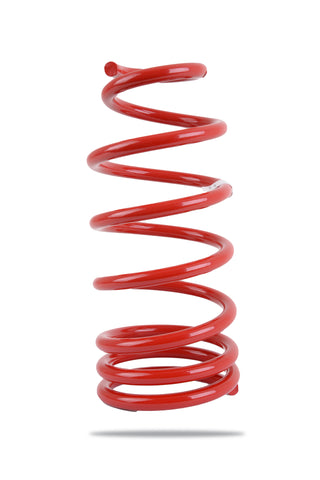

Pedders Trakryder Coil Spring

Pedders TrakRyder coil springs are the foundations of an enhanced 4WD suspension system. They are built to ISO 9001 standards with tolerance of only +/-2mm at loaded height, and give you vehicle the ability to perform.

Rear Raised Coil. Suits series 1 models built up to 06/2007 (130mm OD Spring). Can be identified by having Loop/Loop Style Shock Absorbers.

2 required per vehicle.

TrakRyder coils are heavy duty units that provide the precise rate needed to control the movement of heavy 4WD vehicle bodies and wheel assemblies. The coils are matched to TrakRyder shocks to reduce body roll, rolling pitch and brake dive and to improve overall handling, comfort and traction through superior suspension control. Pedders heavy duty coil springs are specifically designed to enhance the vehicles load carrying characteristics. They are also particularly suitable for people who are often carrying loads by trailer or in the boot of the vehicle.

Features & Benefits

• Cut To Precise Length
• Hot Formed Coils
• Coils Are Quenched In Oil Bath
• Slowly Tempered in Oven
• Shot Peened
• Scragged
• Powder Coated

Applications

Tech/Specs

Rear Height Raise: 25mm

Rear Spring Rate: 4.2kg/mm
