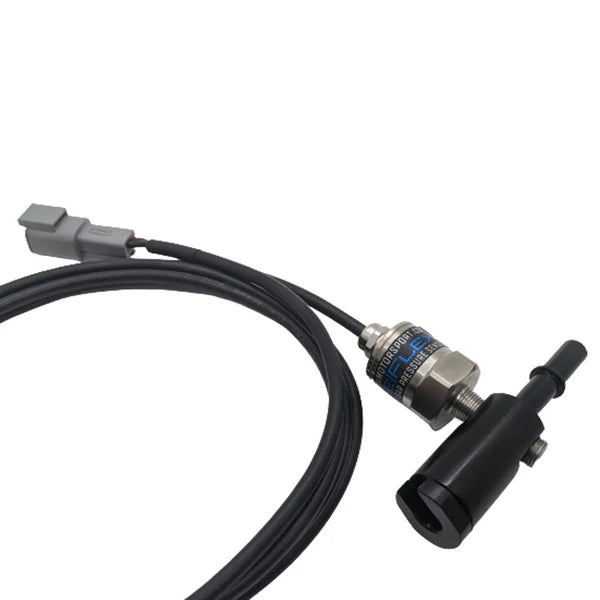

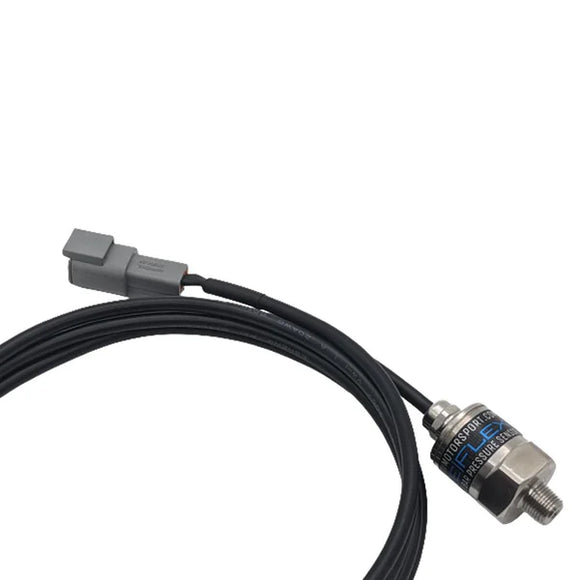

Motiv Re|Flex 0-10 Bar Pressure Sensor

101-0216

This 0-10 Bar sensor is safe for fuel pressure, exhaust gas back pressure, oil pressure, coolant pressure, and more. Paired with an ATM 2 Pin connector it is Plug-n-Play to your MOTIV Re|Flex.

Includes:

• 0-10 Bar Sensor
• ATM 2 Pin PnP Connector

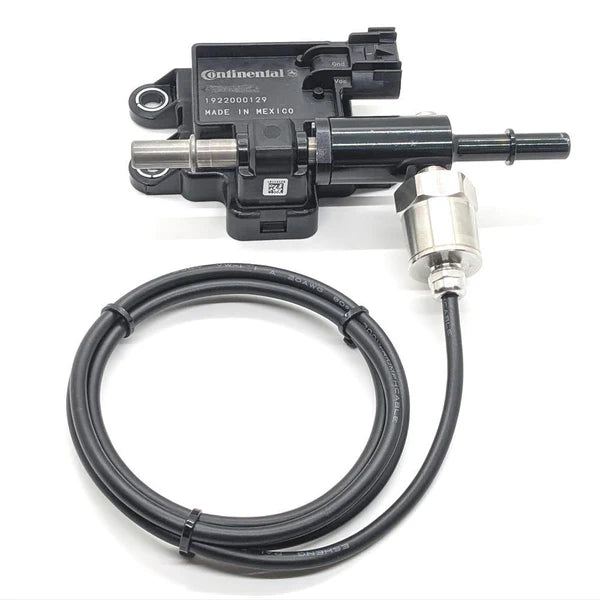

Optional Adapters:  (NOT necessary if running our latest fuel lines with the included 1/8" NPT port built into the line)

• 3/8 Female to 3/8 Male SAE Quick Connect with 1/8" NPT Port
• 5/16 Female to 5/16 Male SAE Quick Connect with 1/8" NPT Port

Does not include an ethanol sensor.

Pressure Sensor: 0-10 Bar

Thread: 1/8" Male NPT (requires Teflon tape)

Fuel Line connection (if selected): either 5/16" to connect in fuel line or 3/8" to connect to ethanol sensor

Weight (no connector): 0.35 lbs

Weight (5/16" connector): 0.40 lbs

Weight (3/8" connector): 0.50 lbs

Does not include An Ethanol Sensor
