OVERVIEW

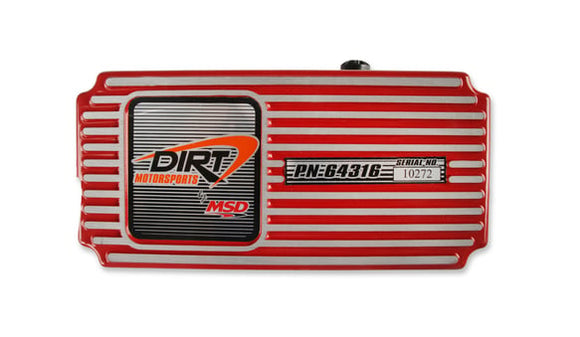

Originally designed with NASCAR in mind, the 6ALN is equipped with the 6-Pin Deutsch connector to meet NASCAR's ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure.
Features:
- Multiple spark, capacitive discharge ignition control
- Supplied with rubber shock mounts
- Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
- 110 millijoules per spark up to 15,000 RPM
- 470 primary voltage output to coil
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- Works on 12 - 18 volt electrical system
- Multiple sparks for 20 degrees of crankshaft rotation
- Built-in Soft Touch Rev Control is fixed to 7,600 RPM
- Clear plastic base plate for easy tech inspection
- Circuit board is encased in a clear two part silicone elastomer
- 6-pin Weathertight connector, mandatory for NASCAR use
- Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection
About MSD
From small block street cruisers to 10000 horsepower top fuel dragsters, MSD's ignition systems has been the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.
