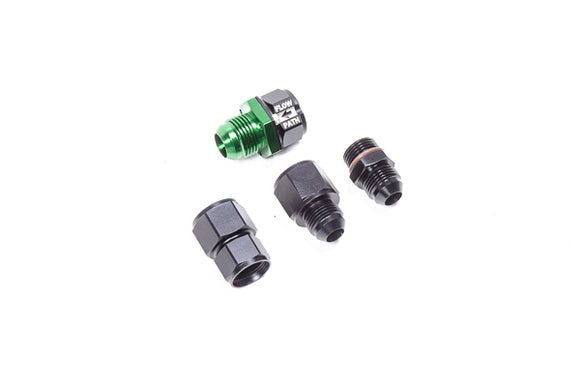

Radium Engineering Universal Check Valve Kit 8AN

20-0534-08

The 8AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 8AN male and/or 8AN female.

Shown below are all of the adapter fitting scenarios for this check valve kit.

SPECIFICATIONS
Body Seal: FKM
Plunger Seal: FKM
Hardware: Stainless Steel
Spring Material: Stainless Steel
Plunger Material: Stainless Steel
Body Material: Anodized Aluminum
Check Valve Type: Spring-Loaded Piston
Large Hex: 30mm (or 1-3/16")
Length, No Adapters: 1.72" (43.6mm)
Cracking Pressure: 0.3 psi @ 70F
Max Operating Pressure: 1000+psi @ 70F
Backflow Holding Pressure: 1000+psi @ 70F
