Radium Engineering 1.5in Vented Remote Mount Fuel Filler

20-1005-V

REMOTE MOUNT FUEL FILLER

A remote mounted fuel filler is NOT located directly on the fuel tank or fuel cell, but rather somewhere else on the vehicle, such as the fender. See this blog article for more information on fuel cell filling

20-1005-V Remote Mount Fuel Filler, 1.5in, Vented

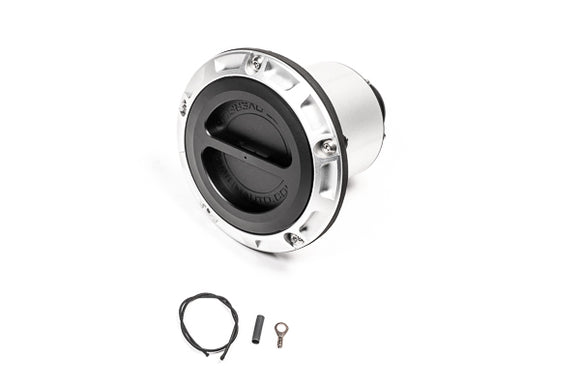

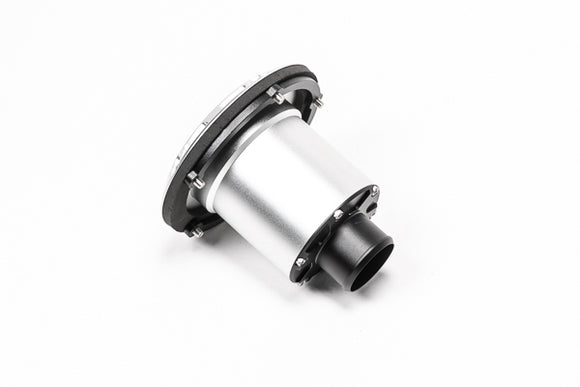

The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5" filler hose (available HERE). The outer diameter is 4.75" and uses 4.25" P.C.D for the five M5 bolts. Total height is 4.1". Requires a 77mm (3.03") hole to be fabricated.

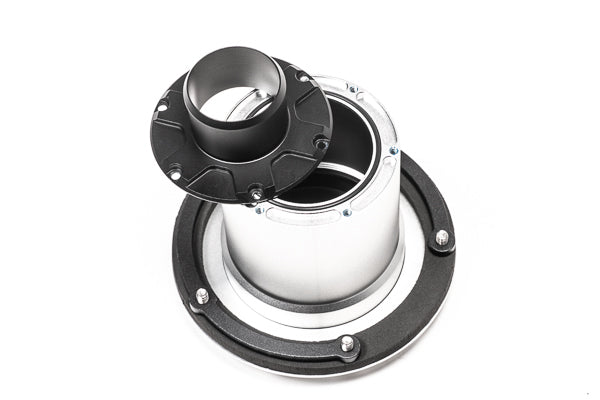

The o-ring sealed 1.5" barbed outlet is interchangeable.

By simply removing 6 screws, a different outlet adapter (sold separately) can be installed.

See the 2.25" barb (20-1007) and the 24AN fitting (20-1008) below.

If needed, a tether is also provided, as shown below.

Included:
-Vented Cap with Roll-Over Protection
-Flanged Fill Neck for 1.5" ID Hose
-Ozone/Flame Resistant Gasket
-Anodized Aluminum Nut Ring
-Stainless Steel M5 Bolts
-Tether Components

Notes:
1. Does not include accessories to connect to the fuel tank.
2. Can be upgraded later to a dry break using Radium 20-0549-V.
