REDARC BCDC Side by Side Engine Bay Wiring Kit - 25A

BCDCWK-001

Suitable for BCDC1220, BCDC1220-IGN, and BCDC1225D, the BCDCWK-001 BCDC Wiring Kit has been designed to facilitate easy installation of a REDARC BCDC DC to DC Battery charger when the start battery and auxiliary battery are in close proximity within the engine bay (less than 2’ apart).

This kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC between the batteries. The cables are even pre-crimped on one end, and through use of the supplied terminal block, the other end of the cables can be trimmed to length to suit the specific installation. The Auxiliary Battery ground cable and solar to Anderson cable are sold separately.

FEATURES

• Suits engine bay installations
• Perfect for batteries in close proximity
• Complete wiring solution
• Cables supplied pre-crimped at one end.
• All required cables, fuses, fuse holders and connectors included

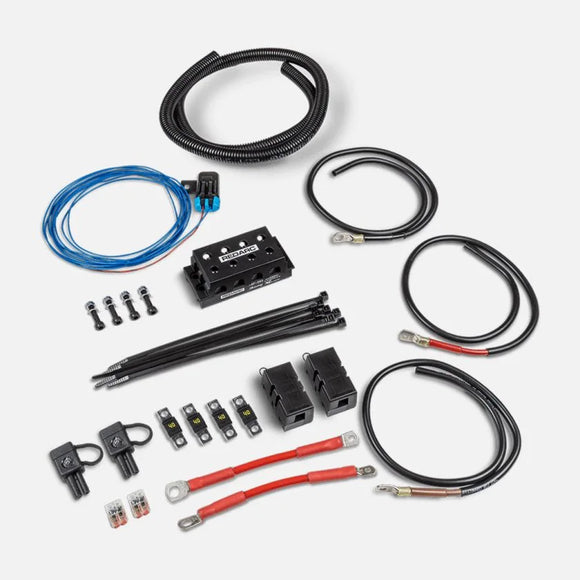

KIT INCLUDES

• Brown, Black and Red Cable
• Terminal block with plastic cover
• M5 x 25mm Socket Head Screw
• M5 Nylon Locking Nuts
• M5 Flat Washer
• 150 mm (6") Red Cable (shorter)
• Fuse Kit
• Cable ties
• Wago® Connector and Boot
• Blue Cable
• 1m (39") Protective Conduit
