REDARC Tow-Pro Electric Brake Controller Mounting Kit

EBMK-001

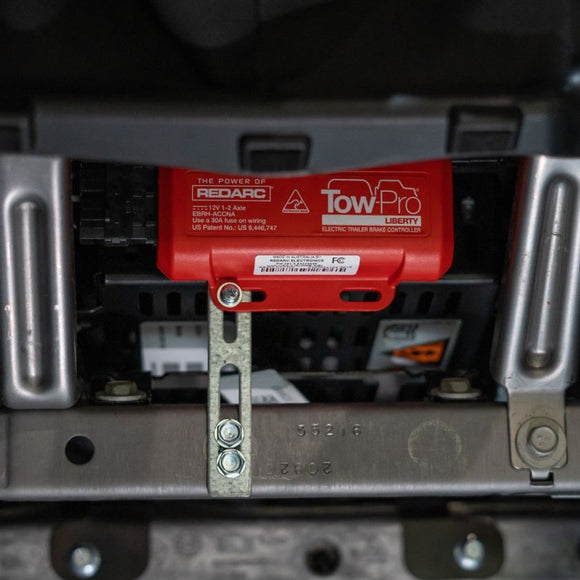

The REDARC Tow-Pro Mounting Kit simplifies the installation of the Tow-Pro Elite electric trailer brake controller main unit under the dash of a vehicle.

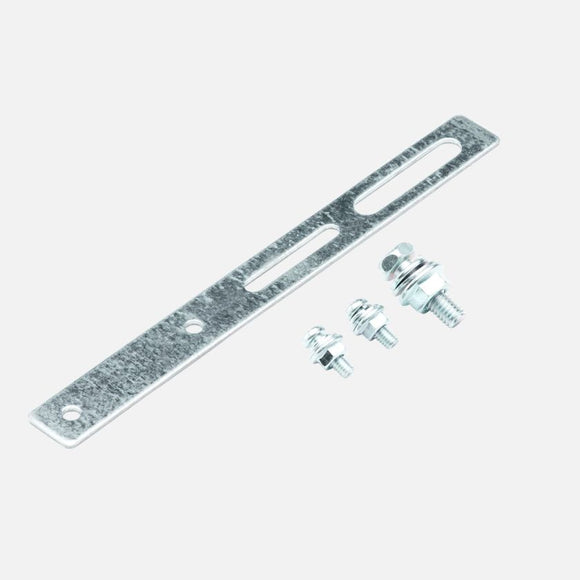

The bracket is designed to be fastened to the main unit with 2 x M4 bolts either at right angles, in-line or diagonally across the main unit. It also features an M6 slot and nut/bolt allowing connection to the vehicle on a suitable M6 stud or M6 hole.

The material of the bracket is rigid to support the main unit but can still be bent should the installation require it.

REDARC also offer a range of vehicle specific wiring harnesses and Switch Insert Panels that aid the installation of the market-leading Tow-Pro Elite into vehicles.
