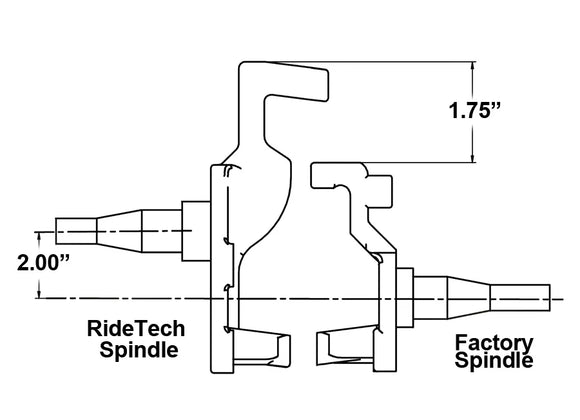

11009300 The RideTech spindle is a heavy duty forging that is approx. 1.75″ taller (ball joint to ball joint) than the OEM spindle. This changes the angle of the upper control arm which induces negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel. Compatible with any brake kit that is designed to fit the stock disc brake spindle.
Instructions
AFX Pin Spindle
Download File
Suspension Location
Front
Suspension Type
Air Suspension, Coil-Over Suspension
Year
1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
Make
Buick, Chevrolet, Oldsmobile, Pontiac
Model
442, Camaro, Chevelle, Chevy II, Cutlass, Cutlass Supreme, El Camino, F85, Firebird, Grand Prix (65-68), Grand Prix (69-72), Grand Prix (78-87), GS, GT, Lemans, Malibu, Monte Carlo, Nova, Skylark, Special, Sportwagon, Tempest, Vista Cruiser
