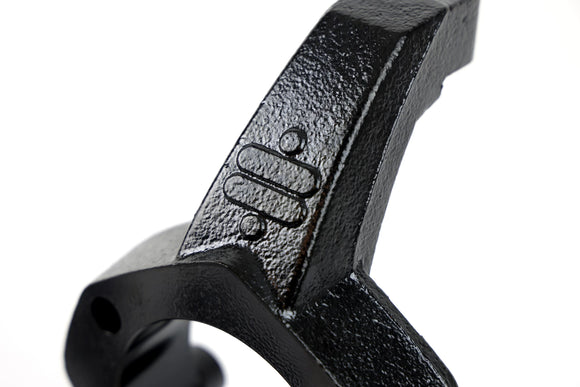

Ridetech AFX Hub 2in Drop Spindle for GM A, F, and X Body

11009312 The Ridetech AFX Hub Spindles add the performance and simplicity of late model Corvette hubs and brakes to your muscle car!
Features:
Lowers vehicle 2″.
1.75″ taller, improves negative camber gain and roll center.
Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance.
Compatible with C5/C6 Corvette brake systems, OE and Aftermarket (caliper brackets sold separately).
Stock track width.
High tensile ductile iron with durable black e-coat finish.
100% manufactured in the USA!
Fitment:
64-72 A-Body (Chevelle, Skylark, Cutlass, etc. with stock steering arms)
67-69 F-Body (Camaro and Firebird w/ stock steering arms or TruTurn)
68-74 X-Body (Nova, Acadian w/ stock steering arms or TruTurn)
62-67 X-Body (Nova, Chevy II with Ridetech TruTurn system)
63-82 Corvette (using Ridetech TruTurn system)
Hub and Brake Compatibility:
Hubs – 1997-2013 Corvette (C5/C6) or 2014-2019 Corvette (C7). C7 hubs are preferred, they are stronger and more cost effective as they don’t have a wheel speed sensor (Moog 513378).
Brakes – Any 1997-2013 Corvette (C5/C6) will fit (OE replacement or aftermarket). Ridetech caliper brackets are required. (Part # 11009546)
11009312.pdf
Spindle Instructions
Download File
