RockJock TJ/LJ/XJ/MJ Johnny Joint Kit Front End Housing 30 or 44 w/ Greasable 1/2in Thru Bolts

The RockJock Johnny Joint Differential Housing Kit replaces the rubber front differential housing upper control arm bushings on your Jeep TJ, LJ, XJ, MJ or ZJ vehicle with Johnny Joint rod ends from RockJock, allowing you to get maximum articulation out of your front suspension! If you are using our Johnny Joint control arms, this kit essentially finishes off the package by making all of your control arm mounting points Johnny Jointed and free to articulate.
The 1/2 in. bolt option of this kit is generally used in racing applications, or, if you are just wanting to go as heavy as you can on everything from the get go.

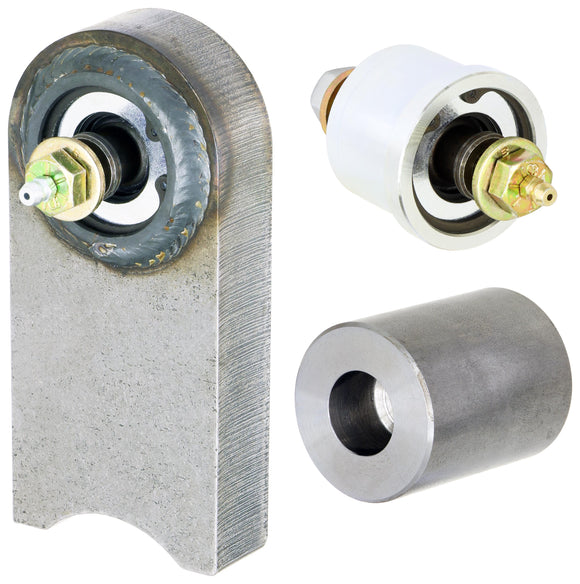

This kit includes a machined Johnny Joint insert for the driver’s side of the differential, a weld-in (see instructions) “tombstone” bracket, equipped with a Johnny Joint, that installs on the passenger’s side of the differential, 1/2 in. greasable bolts for both Joints and an installation tool.
RockJock’s Johnny Joints are the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems. Learn more here.
Joints are fully greasable via the zerk fitted bolts. Finish is clear zinc plating on the insert style Johnny Joint and raw, weldable steel on the tombstone bracket.

Kit Fits:

• TJ Wrangler – All Models’ Factory Differential
• TJ Wrangler Unlimited (LJ) – All Models’ Factory Differential
• XJ Cherokee – All Models’ Factory Differential
• MJ Comanche – All Models’ Factory Differential
• ZJ Grand Cherokee – All Models’ Factory Differential

Kit Includes:

• (1) Machined 2 in. Johnny Joint
• (1) Laser cut tombstone bracket w/ 2 in. Johnny Joint
• (2) Greasable Bolts w/ Hardware
• (1) Installation Tool

Notes:

• Cutting and welding equipment is required for installation!
• Drilling required! This kit includes 1/2 in. bolts. Stock upper control arm bolts are 10mm. It is required for installation that you drill the bolt holes in your control arms out to 1/2 in. with the proper drill bit.
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint Assembly/Disassembly Tool for these joints: CE-9112T

Instruction Manual:

• CE-9102K Kit

Installation Video:

• CE-9102K Kit

Parts List:

• Complete (single) Machined Johnny Joint w/ Greasable Bolt: CE-9112M2
• Johnny Joint Rebuild Kit: CE-9112RK
• Johnny Joint Pivot Ball: CE-91122D
• Greasable Bolt: CE-91128
• Zerk Fitting (on bolt heads): CE-1103K21
• Installation Tool for driver’s side joint: CE-9102KT
