RockJock JK Shock Mount Relocation Kit Front Upper w/ Hardware Pair

RockJock 'sFront Shock Relocator Kit for the front of JK Wranglers and Unlimiteds is necessary when a JK is lifted and a high-articulation suspension system, such as the RockJock Johnny Joint Suspension System is installed. Upon dramatic articulation of the suspension, the shocks are able to make contact with the side of the chassis. This can cause bending or breakage of the shocks. By tipping the tops of the shocks outward, they are given the little extra clearance they need to not contact the chassis.
Again, this applies to suspension systems such as our bolt-on kit that features 4 standard length control arms mounted in stock chassis and differential brackets. This information and these components may or may not apply to any given long arm/long travel and triangulated suspension systems. Finish on brackets is semi-gloss black powder coat and zinc plating on the hardware.

Kit Fits:

• JK Wrangler Unlimited (4-door) – All Models
• JK Wrangler (2-door) – All Models

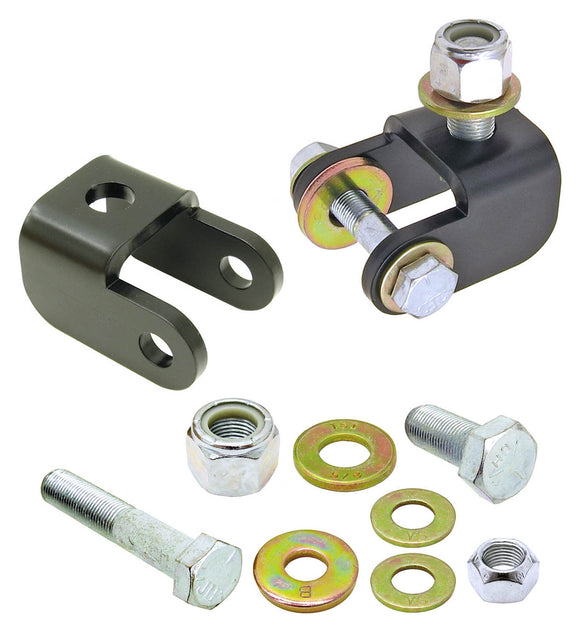

Kit Includes:

• (2) Shock Relocator Brackets)
• All necessary hardware

Notes:

• This kit is intended for use on stock JK frames only.

Instruction Manual:

• CE-9807FSRK Kit

Parts List:

• Shock Relocator Bracket: CE-9807FSRBB
• 5/8 in.-18 x 1 1/2 in. Long Hex Bolt: CE-92865A433
• 5/8 in. Flat Washer: CE-98023A035
• 5/8 in.-18 Nyloc Nut: CE-95615A260
• 1/2 in.-20 x 2 3/4 in. Long Hex Bolt: CE-91247A359
• 1/2 in. Flat Washer (1.080 in. O.D.): CE-H0014
• 1/2 in. Flat Washer (1.375 in. O.D.): CE-H0016
• 1/2 in. Stover Nut: CE-92501A440
