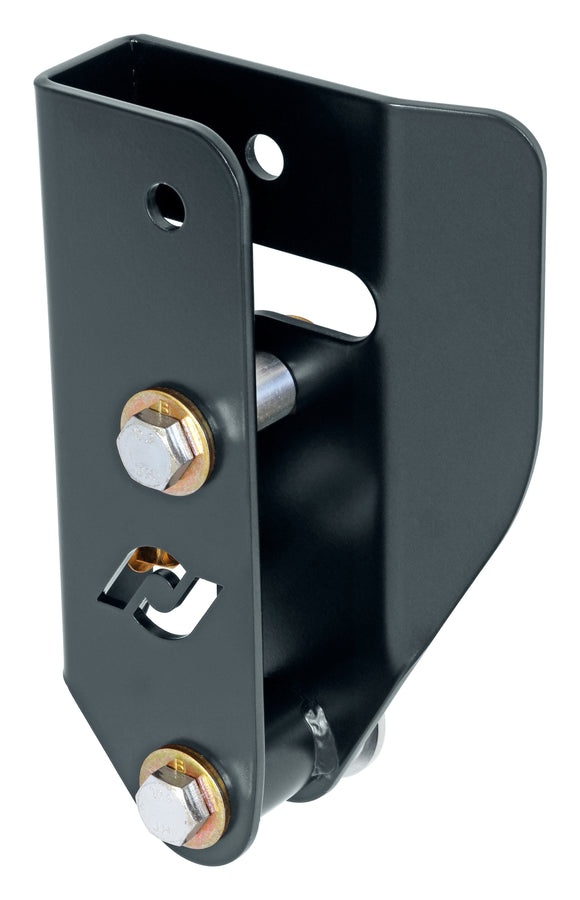

RockJock JL 392 Only Geometry Correction Axle Bracket for Rear Trac Bar

RockJock’s JL 392 Rear Trac Bar Geometry Correction Bracket relocates the axle housing mounting point of the rear trac bar upward, correcting the location of the trac bar mounting point on lifted vehicles.
This kit is completely bolt-on and very simply installs into the factory axle housing.
Bracket is finished in semi-gloss black and includes all necessary hardware for installation.

Kit Fits:

• JL Wrangler Unlimited (4-door) - 392 Model’s Stock Differentials

Kit Includes:

• Trac Bar Relocation Bracket
• All Required Hardware

Notes:

• Fitment - This bracket is only for use on 392 models. For other JL models, see our RJ-141402-101 bracket kit.
• Lift - This kit is ideally designed to work on 2.5 in.–4 in. lifted vehicles.
• Trac Bar - May be used with a factory trac bar (within the lift parameters above). Bracket may also be used with larger lift amounts, but will yield diminished benefit without the use of an adjustable trac bar, such as our CE-9120RJL Johnny Joint adjustable trac bar.

Parts List:

• Geometry Correction Bracket: RJ-141403-1
• Steel Spacer: RJ-514001-1
• Machined Steel Retainer: RJ-510000-1
• 14mm-1.5 x 80mm Long Hex Bolt: RJ-501102-1
• 14mm Flat Washer: CE-H0016
• 14mm-1.5 Stover Nut: RJ-502102-1
• 1/2 in.-13 x 1 1/4 in. Long Hex Bolt: RJ-501203-3
• 1/2 in. Flat Washer: CE-H0014
• 1/2 in.-13 Stover Nut: RJ-502505-1
