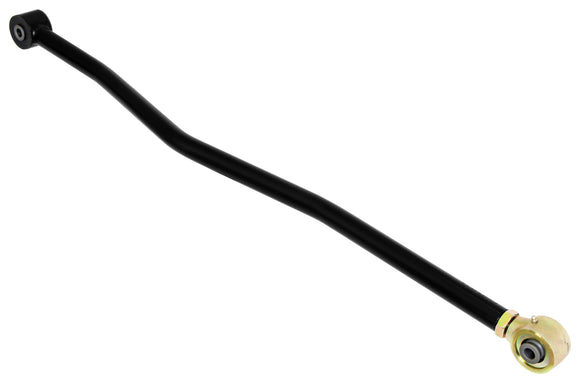

RockJock 2021+ Bronco Johnny Joint Rear Trac Bar Adjustable Greasable

RJ-183400-101

RockJock’s Johnny Joint Adjustable Length Rear Trac Bar for the 2021-up Bronco features precise bends for a perfect fit into stock or lifted vehicles as well as vehicles with larger, aftermarket differentials.
For maximum articulation, this trac bar features greasable, narrow Johnny Joint rod ends at both ends, the axle housing end being adjustable. Use the adjustability of this bar to center the axle under the chassis as well as to improve driveshaft-to-fuel-tank clearance.
This bar may be used with our without our RJ-181400-101 Trac Bar Relocation Bracket Kit. Finish is semi-gloss black powder coat and the forged adjuster end is finished in gold zinc plating.

Kit Fits:

• 2021-up Bronco – All Models

Kit Includes:

• Johnny Joint Rear Trac Bar Assembly
• Rubber Washers outboard of the Johnny Joint at the frame end to encourage the bar to re-center itself after articulating

Adjustment Range:

• Closed – 43.500 in.
• Extended – 45.160 in.

Notes:

• Fits with stock exhaust and should fit with aftermarket exhaust systems, however fitment has not been confirmed with non-stock components.
• Non-stock / adjustable control arms will affect the dynamic clearances to this or any other trac bar.
• Factory hardware is retained to attach the trac bar to the axle and the chassis.
• Bar is fabricated from 1 3/8 in. x .120 in. wall DOM tubing.
• Adjuster features 1 in.-14 RH threads.
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint Tool for these Control Arms:  CE-9110T

Parts List:

• Johnny Joint Adjuster End (complete, RH thread):  RJ-331301-102
• Johnny Joint Rebuild Kit:  CE-9110NRK
• Johnny Joint Pivot Ball:  RJ-348005-1
• Jam Nut (RH thread):  CE-9113JN
• Rubber Washer:  RJ-533000-1
• Zerk Fitting:  CE-1103K21
