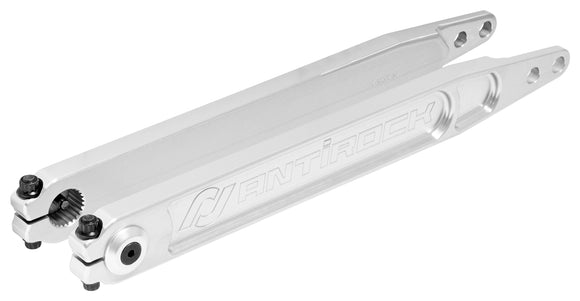

RockJock JL/XJ/MJ Antirock Sway Bar Billet Aluminum Arms - 17in

Billet Aluminum Antirock Sway Bar Arms are beautifully constructed, yet offer race quality strength for aggressive off road applications!
Made entirely in house on our own machines, we start with premium 7075T6 aluminum material, CNC machine the arms to shape, CNC machine the pocketed design and the logo etchings, broach the 25 splines and finish them off in clear anodizing!
These specific arms are 17 in. long from tip to tip, 3/4 in. thick (with the exception of the tip being machined to 3/8 in. thick for end link mounting). At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars as well as our high-end, 12-point vertical pinch bolt and nut. Our billet aluminum finishing washers and flat head allen bolts that thread into the end of the sway bar torsion bar are also included.
At the end link mounting end, the arms trim down to 3/8 in. thick and you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. These 2 holes are commonly used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.

Arms Fit:

• Universal Application (in 25 spline torsion bar applications)
• JL Wrangler and Unlimited rear Antirock Kits CE-9900JLR4
• XJ Cherokee and MJ Comanche front Antirock Kits CE-9900XJF

Kit Includes:

• (1) Pair of 17 in. long Forged Antirock Sway Bar Arms
• (1) Arm Hardware Pack

Component Specs.:

• Overall length  =  17 in.
• Thickness  =  3/4 in. (with the exception of the tip being machined to 3/8 in. thick for end link mounting)
• Material  =  7075T6 aluminum
• Spline count  =  25
• Center of splined hole to center of nearest 1/2 in. hole  =  14.195 in.
• Center of splined hole to center of middle 1/2 in. hole  =  15.195 in.
• Weight  =  3.5 lbs. (for the pair)

Notes:

• These arms are for upgrading our CE-9900JLR4 JL rear Antirock Sway Bar Kits as well as our CE-9900XJF XJ Cherokee and MJ Comanche front Antirock Sway Bar Kits
• Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
• See RJ-520202-101 for sway bar arm hardware kit.
