Details

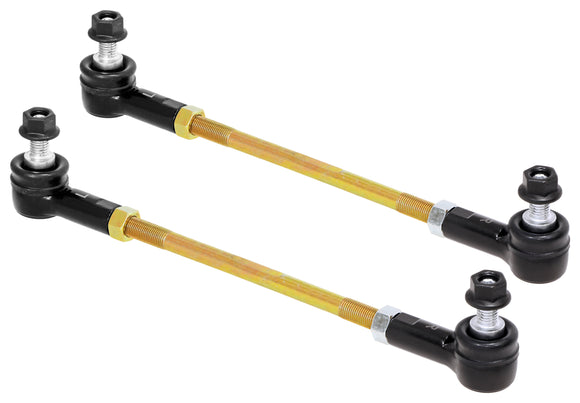

This RockJock Adjustable Sway Bar End Link Set features 10 1/2 in. long link rods with 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates.
Link sets are compatible with our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
Kit Fits:
- (Compatible with) Jeep JK Wrangler Suspension Kits - All
- (Compatible with) Jeep JK Wrangler Rear Antirock Sway Bar Kits - All
- (Compatible with) Jeep YJ Wrangler Front Antirock Sway Bar Kits - All
- Universal Use
Kit Includes:
- (2) 10 1/2 in. End Link Rods (gold)
- (2) 1/2 in.-20 LH Sealed Rod Ends
- (2) 1/2 in.-20 RH Sealed Rod Ends
- (2) 1/2 in.-20 LH Jam Nuts
- (2) 1/2 in.-20 RH Jam Nuts
Gold Rod Specs.:
- 10 1/2 in. Long
- 1/2 in. Diameter
- 1/2 in.-20 LH Threads – 2 5/8 in. Long
- 1/2 in.-20 RH Threads – 2 5/8 in. Long
- Center Smooth Area – 5 1/4 in. Long
Adjustment Range:
- Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on til they meet the smooth area of the rod), C-C is 10.765 in.
- Extended – Uncut rods with ends installed safely adjust out to 14.140 in. C-C
Notes:
- These are optional, upgraded links that are compatible with our JK Suspension Kits and JK and YJ front Antirock Sway Bar Kits
- Wrench flats: gold rods - 11mm wrench, sealed rod ends – 18mm wrench, jam nuts - 3/4 in. wrench
Parts List:
- 10 1/2 in. Link Rod: CE-9901RD5
- Sealed Rod End (LH): RJ-527000-102
- Sealed Rod End (RH): RJ-527000-101
- Jam Nut (LH): CE-H0020
- Jam Nut (RH): CE-95462A525
