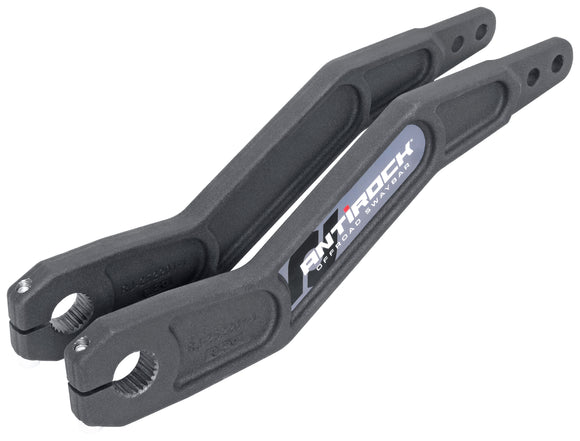

RockJock Antirock Forged Chromoly Sway Bar Arms 16.2in Long x 28 Spline Vertically Offset

For those looking for maximum strength and cool factor for their off-road or rock crawling rig, RockJock’s Forged 4140 Chromoly Antirock Sway Bar Arms have got you covered!
Available in various lengths and shapes to suite different builds and applications, the forged I-beam construction provides dramatic strength and rigidity.
These specific arms are 16.2 in. long from tip to tip, 3/4 in. thick and feature a vertical offset to attain maximum up travel. At the arm mounting end, you’ll find the 28 splined mounting hole that fits our heavy, 1 1/8 in. diameter Antirock torsion bars as well as the vertical pinch bolt hole for attaching the arm to the bar.
At the end link mounting end, the arm forging trims down to 3/8 in. thick and you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. These 2 holes are commonly used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.
Arms are sold as a pair only, are finished in a textured gloss black powder coat and include stickers.

Arms Fit:

• Universal Application (in 28 spline torsion bar applications)
• Included in RJ-256200-103 JT Gladiator rear Antirock Kit

Kit Includes:

• (1) Pair of 16.2 in. long Forged Antirock Sway Bar Arms
• (1 ea.) LH and RH Arm Stickers

Component Specs.:

• Overall length  =  16.2 in.
• Material  =  4140 chromoly, forged
• Thickness:  =  3/4 in. (3/8 in. at the tip where end links mount)
• Offset  =  Vertical
• Spline count  =  28
• Center of splined hole to center of nearest 1/2 in. hole  =  13.20 in.
• Center of splined hole to center of farthest 1/2 in. hole  =  14.20 in.
• Weight  =  13 lbs. (for the pair)

Notes:

• These arms are found in our RJ-256200-103 JT Gladiator heavy bar rear Antirock Sway Bar Kit for overlanding or race applications.
• Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in. side to side.
• See RJ-520201-101 for sway bar arm hardware kit.
