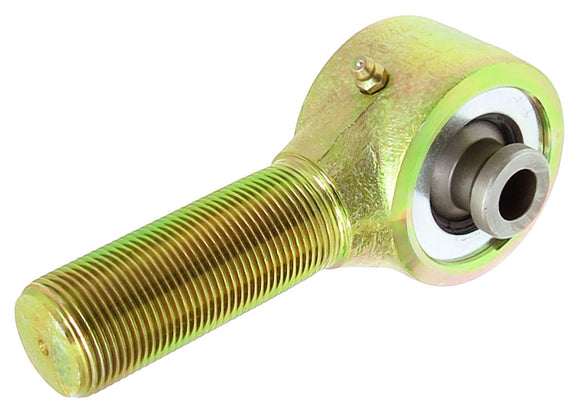

RockJock Johnny Joint Rod End 2 1/2in Narrow Forged 1 1/4in-12 LH Threads 2.360in x .641in Ball

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 30-plus degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 left hand threads on the shank, and a 2.360 in. mounting width ball with a .641 thru bolt hole. Finished in gold zinc plating.
