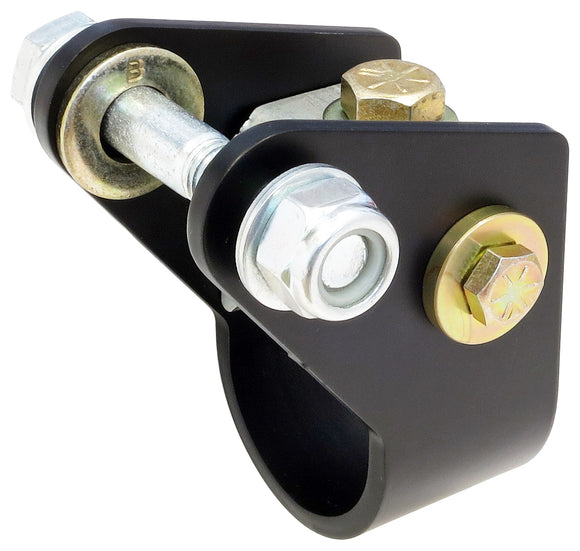

RockJock JL/JT/JK Currectlync Steering Stabilizer Shock Tie Rod Clamp Kit

If you take your Jeep JL or JK Wrangler or Unlimited or JT Gladiator off road, you need heavy duty parts you can rely on! When installing aftermarket steering or differentials, you’ll likely encounter the need for a new steering stabilizer shock bracket. This clamping style Steering Stabilizer Shock Relocation Bracket from RockJock should do the trick! This bracket is an easy, bolt-on solution for mounting your shock to keep your wheeling trouble free!
This double shear Steering Stabilizer Shock Bracket Kit allows you to relocate the axle housing end of your JL Wrangler, JL Unlimited or JT Gladiator’s stock steering stabilizer shock, and move it's mounting point from the axle housing out to the tie rod. This is most commonly occurs when you upgrade your JL or JT vehicle to a heavier tie rod and are no longer able to mount the shock in it's stock location on the passenger's side tie rod end and are forced to move the shock entirely. Also, aftermarket axles are not equipped with the provisions for remounting the shock to the axle housing.
On Jeep JK Wrangler and Unlimited vehicles, when upgrading to heavy duty steering components, you will lose your stabilizer shock mount that is part of the tie rod. This bracket will allow you to remount the tie rod end of the shock back onto the new, larger tie rod.

Kit Fits:

• RockJock Currectlync JL, JT and JK Tie Rods
• All other 40mm-42mm tube size Tie Rods

Kit Includes:

• Laser cut and formed 3/16 in. steel bracket
• All required hardware and step-by-step instructions

Kit Features:

• Semi-gloss black powder coat and zinc plate finished components
• 2-year warranty

Notes:

• Fits 40-42mm tie rods only!
• In JL and JT applications, usage of this bracket will require you to relocate the other end of the stabilizer shock as well.
• This bracket accepts stock JL and JT shocks. Other styles of shocks will require a spacer.
• If you are using this bracket on a JL or JT, you will need our RJ-441102-101 bracket kit for the other end of the shock.
• For use with traditional style stabilizer shocks only – not for use with ram assist!

Instruction Manual:

• RJ-441105-101 Kit

Parts List:

• Stabilizer Shock Clamp Bracket (only):  RJ-441105-1
• Wedge Bracket:  RJ-441107-3
• Machined Steel Pin:  RJ-441105-5
• 7/16 in.-14 x 1 in. Long Hex Bolt:  RJ-541201-1
• 7/16 in. Flat Washer:  CE-98025A132
• 12mm-1.75 x 75mm Hex Bolt:  RJ-501100-1
• 9/16 in. Flat Washer:  CE-H0022
• 12mm Flat Washer:  CE-91455A150
• 12mm-1.75 Nyloc Nut:  RJ-502100-1
• 5/16 in.-24 x 1/2 in. Long Hex Bolt:  RJ-541200-1
• 5/16 in. Thick Machined Steel Washer:  RJ-543200-1
