Rywire 2JZ-AEM Infinity 506 Mil-Spec Engine Harness w/506 ECU/Factory Coils

Rywire 2JZ-AEM Infinity 506 Mil-Spec Engine Harness w/506 ECU/Factory Coils

$1,861.62 CAD

Rywire SKU: rywRY-2JZ-INFINITY

Earn [points_amount] when you buy this item.

Description Availability

RY-2JZ-INFINITY

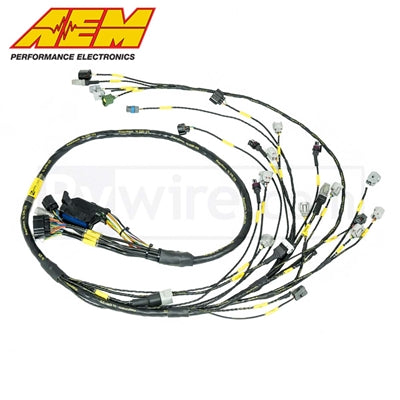

The Rywire 2JZ Infinity Engine Harness Is made with multi-colored Tefzel wire and Raychem heat shrink

This harness uses Mil-Spec Teflon coated wire with a maximum heat rating of 200°C . The Teflon coated wire is loomed with The highest quality Raychem DR-25 heat shrink covering, and adhesive lined wire junctions to keep moisture out.

All connectors and materials are new. Each connector is crimped with pneumatic heads to ensure an OEM crimp every time, then tagged with a white identification label for easy installation. All heavy interference circuits are protected and grounded with proper wire covering. Our engine harnesses are 100% quality tested pin to pin; And resistance checked to ensure no voltage fluctuations.

We offer a AUX Sub harness that adds the following:

Flex fuel - ECS (ethanol content sensor)
VVT - Cam control solenoid
AC- Air Con. 4 pin Supra style compressor.

Chassis adapter options

This harness can plug and play into any chassis, but we recommend our Rywire standalone RACE fuse box http://www.rywire.com/product-p/b-sub-race.htm

This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.

This harness with the RACE fuse/relay box can also be plug and play with our SWITCH PANEL
http://www.rywire.com/product-p/ry-switch-6.htm

The engine harness, fuse/relay box, and switch panel are all PLUG AND PLAY making your life much easier!

MADE IN THE U.S.A.
Pre-terminated for:

Infinity 506 (AEM Part 30-7106)

Lambda / Uego Bosch 4.2LSU Wideband O2 sensor

Fuel Pressure AEM (AEM Part 30-2130-100)

Oil Pressure AEM (AEM Part 30-2130-150)

Manifold Pressure (MAP) AEM (AEM Part 30-2130-50 or 30-2130-75)

Throttle Position (TPS) Factory Toyota 2JZ (Supra wiring pinout!)

Idle Air Control (IAC) Factory Toyota 2JZ

Intake Air Temperature (IAT) AEM (AEM Part AEM-30-2010)

Coolant Sensor (ECT) Factory Toyota 2JZ

H20 (To gauge cluster) Factory Toyota 2JZ

VVTI Can be added to harness through the spare connector (AUX harness)

Speed Sensor (VSS) Factory Toyota 2JZ

Reverse Switch Factory Toyota 2JZ (v160)

Starter Trigger Factory Toyota 2JZ (plastic connector type)

Ignition Coil Driver Factory Toyota 2JZ (12 pin/4pin Sequential)

Ignition Coils 1-6 Sequential Toyota 2JZ

Ground Ring Terminal

Knock Sensors (KS) Factory Toyota 2JZ

Alternator (ALT) Factory Toyota 2JZ (Oval Style default)

Injectors (6 Injectors Only) EV14 Bosch (default) (We recommend Injector Dynamics ID 1050X or bigger)

Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit)

FLEX FUEL capable via AUX Harness expansion (Rywire flex fuel kit )

Auxiliary Expansion (Spare) 8 Pin Deutsch Connector - Engine Side

Auxiliary Expansion (Spare) 6 Pin Deutsch Connector - Cabin Side

Cam and Crank OEM Toyota 2JZ Hall Sensor compatible

CAN BUS connectivity AEM NET (connects devices such as loggers, dashes, and gauges)

Chassis Integration Connector 20 Pin
This instruction is for the Toyota 2JZ Infinity 506 MIL-SPEC ENGINE HARNESS

[ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]

Rywire - Injector Identification Video
