Rywire Honda B-Series AEM Infinity 508 MS Engine Harness w/K20 Coils/OBD2 Alt/EV14 Inj (Adapter Req)

RY-B-INFINITY

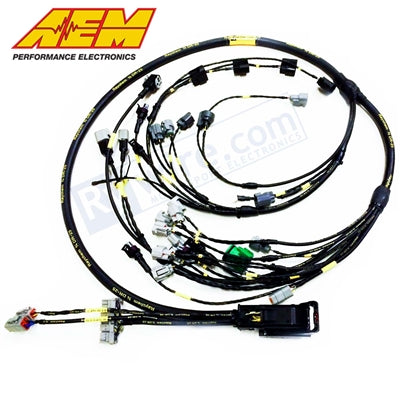

The Rywire Infinity 506/508 (6/8h) harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front wheel drive Hondas of today!

If you are building a Front wheel drive race car and need the data and flexibility of the top computers on the market, then this is the harness for you. The AEM Infinity EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. We have worked with some of the fastest front wheel drive race cars in the world and got there feedback. The harness we are offering allows for plenty of expansion, and pre-terminated connectors exactly where you need them.

Pre-terminated for:

COMPUTER Infinity 506 or Infinity 508 (AEM Part 30-7106 or 30-7108)

Lambda/ Uego Bosch 4.2LSU Wideband O2 sensor

AIR TEMP AEM (AEM Part 30-2010)

Fuel Pressure AEM (AEM Part 30-2130-100)

Oil Pressure AEM (AEM Part 30-2130-150)

Exhaust Backpressure (EMAP) AEM (AEM Part 30-2130-50 or 30-2130-75)

Manifold Pressure (MAP) AEM (AEM Part 30-2130-50 or 30-2130-75)

Throttle Position (TPS) Factory Honda

Coolant Sensor (ECT) Factory Honda

VTEC Factory Honda

Speed Sensor (VSS Hydro) Factory Honda

Reverse Lights Factory Honda

Starter Trigger Factory Honda

Coils Factory Honda K-series (Smart Coils)

Ground Ring Terminals for Coils and Computer Factory Honda

Knock Sensor Factory Honda

Alternator Factory Honda (OBD0/1 or OBD2 styles available)

Injectors (8 Injector) EV1,EV14,Nippon, and others. We recommend Injector Dynamics ID 2000 or/and ID 1000

• Infinity 506 - Up to 6 Low or High Impedance Injectors
• Infinity 508 - Up to 8 High Impedance Injectors only

Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit)

Rear speed expansion Rywire (Rywire rear speed kits for MAG or Hall sensors)

FLEX FUEL capable Rywire (Rywire flex fuel kit )

AUX expansion (Contains power, 5V, sen ground, and 3 AV inputs)

Trigger (CAM/CRANK) AEM/T1/Rywire (easily expandable for AEM EPM, T1 trigger, and Rywire CAM/CRANK trigger)

CAN BUS connectivity AEM NET (connects devices such as loggers, dashes, and gauges)

More info on Rywire harness Trigger system

Rywire understands the necessity for having the best CAM and CRANK trigger possible. Knowing where the crankshaft and camshaft is in the rotation is an essential part of the engines tune, and can make or break a properly built engine.

Our AEM Infinity engine harness is designed to accept:
-The AEM EPM (cam trigger) Plugs directly into loom labeled “Trigger 2”
-T1 Race Development (cam trigger) Plugs directly into loom labeled “Trigger 1”
-Rywire (cam and crank trigger) Plugs directly into loom labeled “Trigger 1” and “Trigger 2”

Chassis adapter options

This harness can plug and play into any chassis, but we recommend our Rywire standalone RACE fuse box http://www.rywire.com/product-p/b-sub-race.htm

This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.

This harness with the RACE fuse/relay box can also be plug and play with our SWITCH PANEL
http://www.rywire.com/product-p/ry-switch-6.htm

The engine harness, fuse/relay box, and switch panel are all PLUG AND PLAY making your life much easier!

MADE IN THE U.S.A.

This pinout sheet is for the B-Infinity harness. [ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
