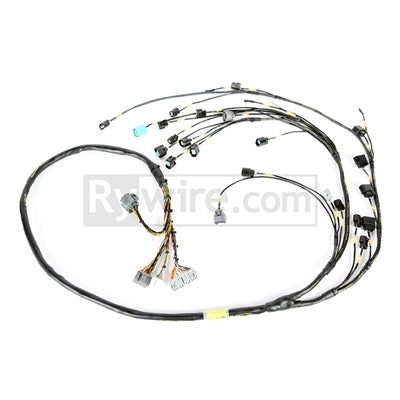

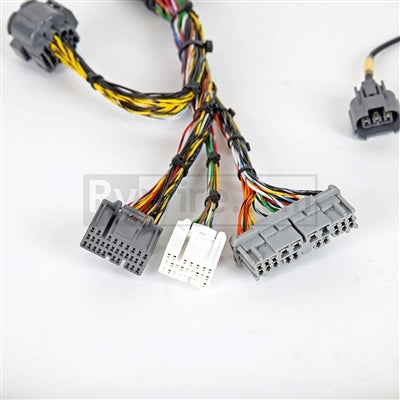

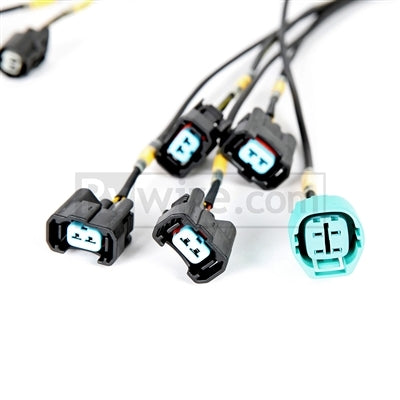

Rywire 05-06 Honda K-Series Mil-Spec Engine Harness w/OBD2 05-06 RSX K20 Sensors (Front VSS)

RY-K2-MILSPEC-05-06Version 2 of the Rywire K-series Milspec Engine Harness

This version was created to facilitate a more universal chassis, and harness routing preference. This style can be routed more like the OEM k-series engine harness through the center or more to the right on the firewall than it's Version 1 counterpart. This routing method is ideal for our (RHD) Right Hand Drive customers however NOT exclusive to RHD chassis and does work fine on a LHD chassis.

Version 2 is also routed in a way which allows you to get around aggressive exhuast manifolds.

About the Mil-Spec K-Series Engine Harness:

This harness offers Mil-Spec Teflon coated wire. Standard wall ethylene-tetrafluoroehtylene (ETFE) insulation ( also known as Tefzel ) designed for aerospace applications where weight, dimensional tolerance, and mechanical durability are required. This wire exhibits high chemical and radiation resistance. using standard factory wire colors with a maximum heat rating of 200°C . The Teflon coated wire is loomed with The highest quality Raychem DR-25 heat shrink covering, and adhesive lined wire junctions to keep moisture out. Each connector is crimped with pneumatic heads to ensure an OEM crimp every time, then tagged with a yellow identification label for easy installation. All heavy interference circuits are protected and grounded with proper wire covering.

Our Mil-Spec harnesses are 100% quality tested pin to pin, and resistance checked to ensure no voltage fluctuations. These are the best harnesses money can buy. NO CORE is necessary when buying a harness from us!

This harness follows an OEM style configuration meaning that you'll still need a interior Computer adapter for your chassis - see the K-Series Computer Adapter link and add-option below!

Rywire also offers a Firewall mounted Mil-Spec connector that will allow easy engine removal for quick engine changes and customization. It can be added along with the Mil-spec Firewall Plate for a show-quality setup.

These harnesses are warrantied and guaranteed to work, we provide excellent installation phone support and troubleshooting to ensure this reputation for quality, however they are non-refundable.

Please ask about our custom Mil-Spec wire harness looms that are not listed online.

HARNESS CONNECTOR LIST:
