Superlift 14-18 Ram 2500 4WD Diesel 4in Lift Kit Replacement Radius Arms w/ Fox 2.0 Shocks

K125F

Superlift Suspension Systems now available in 3 different shock options: Superlift, Bilstein or Fox® Shocks:

Superlift’s 4-Inch Lift kit for the 2014-2018 Dodge Ram 2500 HD featuring replacement radius arms and shocks options : Superlift, Bilstein 5100 Series Shocks, or Fox® performance series 2.0 IFP or Reservoir shocks. These replacement Radius Arms that help locate the axle front-to-rear awhile allowing maximum ground clearance, additional clearance for larger tires and Cleveite® bushings for superior dampening.  Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

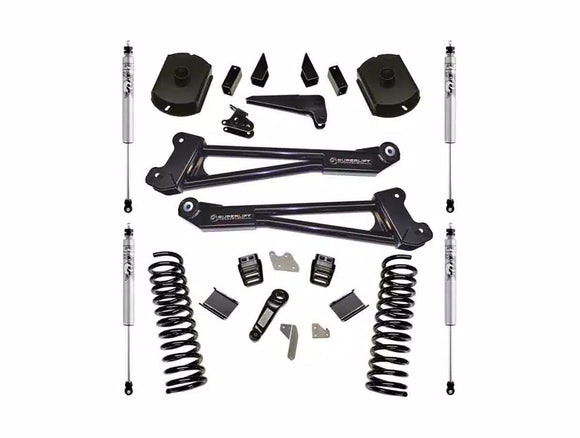

This kit includes rear coil spacers, high clearance radius arms, front and rear shocks.  All required parts are included to make sure your Ram 2500 HD handles and performs just like a stock truck!

Features:

• Superlift | Bilstein® 5100 Series | Fox® Performance Series 2.0 IFP or Reservoir Shocks – Front & Rear
• Replacement Front Coil Spring improves ride quality while the rear coil spaces maintain load capacity
• Massive tubular Replacement Radius Arms with Cleveite® bushings
• Offset Radius arms for additional clearance of larger tires
• Radius Arms offer maximum ground clearance
• Radius Arms feature a “true flat” jack point surface
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Pitman Arm relieves drag link angle to prevent bump steer/wandering
• Backed by our Limited Lifetime Warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:

• Does not fit Power Wagon Models
• Does not fit models with factory air suspension

  Tire	Wheel	Backspacing	Offset
  35 x 12.5	17 x 9	4.5 - 5	-
  35 x 12.5	18 x 9	4.5 - 5	-
  35 x 12.5	20 x 9	4.5 - 5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 7-8 hours
  • Difficulty level: 3 of 5

  NOTE: Does not fit Power Wagon models.

  NOTE: Does NOT fit Models with rear air suspension

  DOWNLOAD INSTALL GUIDE

  • 2014-2018 Ram 2500 DIESEL 4 in. Suspension Lift Kit With Replacement Radius Arms With Fox 2.0 Shocks 4WD
