Superlift 15-20 Ford F-150 4WD 4.5in Lift Kit w/ Fox 2.0 Shocks

K126F

Superlift Suspension Systems now available in Superlift, Bilstein, Fox Shocks or King Shocks:

Superlift’s 4.5 Inch Lift kit for the 2015-2020 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox® performance series 2.0 IFP shocks. This shock variety will allow you find your ride quality.  Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

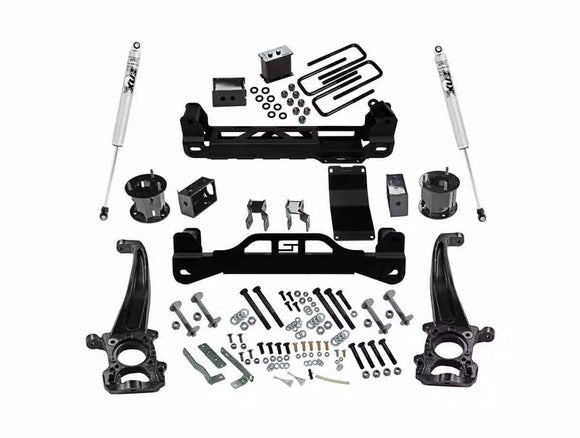

This is a complete replacement knuckle style suspension lift kit that provides 4.5 inches of lift and includes fabricated rear blocks and shocks  All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!

Features:

• Replacement Knuckle style suspension lift kit
• Direct bolt-on (No Weld Design)
• Allows the use of 18” or larger factory wheels
• Allows clearance for up to 33” tires
• Aligns to OEM Specifications
• Rear Superlit | Bilstein | Fox® shocks | King Shocks (K126KG)

Benefits:

• Aligns to OEM Specifications
• Maintains ride quality and handling characteristics
• Corrects Front to Rear factory rake
• Retains OEM Track Width
• Designed using Original Equipment (OE) CAD data for accuracy.

Front:

• CNC Machined extended ductile iron steering knuckles
• CNC machined billet aluminum driveshaft spacer
• All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
• Front top mount strut spacers
• One-piece front and rear cross members
• Front differential skid plate
• Sway-bar relocation brackets
• Differential relocation brackets
• Brake line relocation brackets
• Eccentric cam-bolts

Rear:

• Fabricated rear Blocks – provides proper pinion angle to eliminate axle wrap and driveline vibrations
• Brake line relocation brackets
• U-bolts and hardware
• Compression stop extensions
• Superlift Shocks or Bilstein® 5100 Series or Fox® Performance Series 2.0 Shocks (2 shocks) or King Shocks (FRONT AND REAR KING)

Notes:

• Does not fit Single Cab Truck models
• Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims

  Tire	Wheel	Backspacing	Offset
  33 x 12.5	18 x 9	4.5	-
  33 x 12.5	18 x 9	5.3	19
  33 x 12.5	20 x 9	4.5	-
  33 x 12.5	20 x 9	5.5	25



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 8 hours
  • Difficulty level: 3 of 5



  NOTE: Does not fit Single Cab Truck

  DOWNLOAD INSTALL GUIDE FOR 2015-2020 MODELS


• 2015-2020 Ford F-150 4.5 in. Suspension Lift Kit With Fox 2.0 Shocks 4WD
