Superlift 14-18 Chevy Silv 1500 4WD 6.5in Lift Kit w/ Alum/Steel Control Arms w/ Fox 2.0 Shocks

K161F

Superlift Suspension Systems now available with Superlift, Bilstein 5100 or Fox® 2.0 Shocks:

Superlift’s true to the height 6.5-inch lift kit for the 2014-2018 Chevrolet Silverado or GMC Sierra 1500 are a great way to add height to your overall GM 1500 appearance. Superlift also offers a variety of shock options for the GM 1500 which allows you to choose your ride comfort.  Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

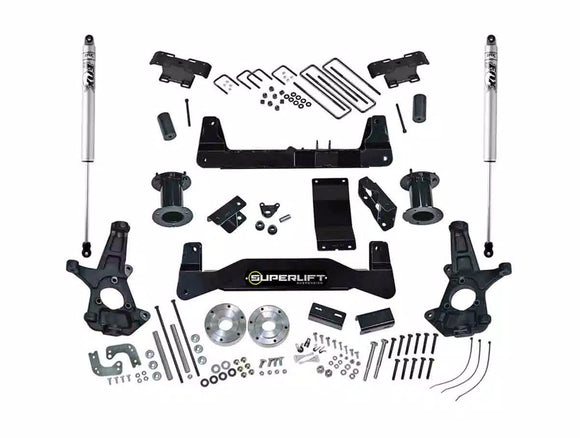

This kit includes front knuckles, front strut spacers, cross-members, a rear block and u-bolt kit and rear Shocks – Superlift, Bilstein, or Fox Shocks. All require parts are included to make sure your Silverado or Sierra handles and performance in all conditions.

Features:

• True to the height Lift Kit at 6.5 Inches
• Direct bolt-on (No Weld Design)
• Adds clearance for up to 35” tires
• Front and Rear – Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy
• Corrects Front to rear Factory rake for a more level stance

NOTES:

• Not recommended for AWD models
• Does not fit models with Auto Ride or Auto leveling
• Only fits models with Stamped Steel or Aluminum Control Arms

  Tire	Wheel	Backspacing	Offset
  35 X 12.5	18 x 9	4.3	-6
  35 X 12.5	20 X 9	-	+12 to +18
  305/65 R18	18 x 9	-	+12 to +18
  305/55 R20	20 X 9	-	+12 to +18



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.



  • Installation time: 7-8 hours
  • Difficulty level: 3 of 5

  DOWNLOAD INSTALL GUIDE

  • 2014-2018 Chevrolet Silverado 1500 6.5 in. Suspension Lift Kit With Aluminum or Stamp Steel A-Arms With Fox 2.0 Shocks This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 4WD
  • 2019 Chevrolet Silverado 1500 Legacy 6.5 in. Suspension Lift Kit With Aluminum or Stamp Steel A-Arms With Fox 2.0 Shocks This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 4WD
  • 2014-2018 GMC Sierra 1500 6.5 in. Suspension Lift Kit With Aluminum or Stamp Steel A-Arms With Fox 2.0 Shocks This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 4WD
  • 2019 GMC Sierra 1500 Limited 6.5 in. Suspension Lift Kit With Aluminum or Stamp Steel A-Arms With Fox 2.0 Shocks This suspension kit WILL NOT WORK with any late model GM Truck or SUV equipped with MAGNERIDE from GM 4WD
