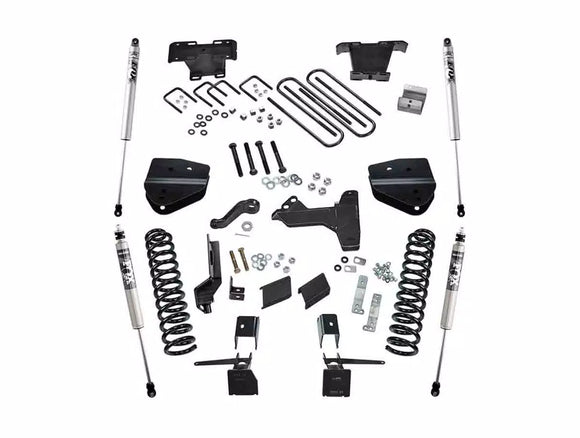

Superlift 17-20 Ford F-250/F-350 SuperDuty 4WD Diesel 6in Lift Kit w/ Fox 2.0 Shocks

K167F

Superlift Suspension Systems now available with Superlift Shocks or Fox® 2.0 Shocks:

This standard 6” Lift for the 2017-2020 Ford Super Duty F-250 | F-350 4WD is achieved via engine specific coil springs to ensure the proper lift height and maintain factory ride quality.  Radius Arm lowering brackets are used to restore proper caster angle/alignment.  Other Components included with the 6” system are: front compression travel-stop relocation brackets, track bar relocation bracket, drop pitman arm and a steering stabilizer bracket.  The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block.  This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 6-inch Ford F-250 | F-350 with the best variety of shocks on the market.  Shocks for this kit are available in the following: Superlift Shocks or Fox Performance Series 2.0 IFP Shocks.

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Radius Arm drops maintain proper caster
• Drop Pitman arm to help ensure proper operating angle of Draglink
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear – Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
• If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734

  Tire	Wheel	Backspacing	Offset
  37 x 12.5	17 x 9	4.5	-
  37 x 12.5	18 x 9	4.5	-
  37 x 12.5	20 x 9	4.5	-
  37 x 13.5	20 x 10	-	-12 to -24
  38 x 13.5	17 x 9	4.5	-
  38 x 13.5	18 x 9	4.5	-
  38 x 13.5	20 x 9	4.5	-
  38 x 13.5	20 x 10	-	-12 to -24
  40 x 13.5	20 x 9	5.5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 7-8 hours
  • Difficulty level: 3 of 5



  NOTE: If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669

  NOTE: If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734
