Superlift 19-20 Chevrolet Silverado 1500 4WD (Excl Trailboss/At4 Models) 6in Lift Kit w/ Fox Shocks

K182F

This all-new GM 1500 features a dramatic change that started from the ground up with the most dynamic styling and angles of any GM 1500 pickup truck has ever seen.  Take this all-new GM 1500 to a completely new height with Superlift’s easiest installed suspension kit today.  The 6-inch lift kit for the all-new GM 1500 is simple yet compliments the most dynamic styling change GM has ever put into their 1500 models.

This 6-inch suspension lift kit has a strong, modern die-formed design made with the strongest materials to give you a suspension kit that can withstand the most challenging terrain.  Superlift Suspension intentionally over-builds our suspension kits to be the best.  Our uniquely engineered design adds strength and durability, along with bonus features and add-ons that others competitors do no offer.   This kit is available with Superlift Shocks or Bilstein 5100 series Shocks or Fox® 2.0 Shocks.

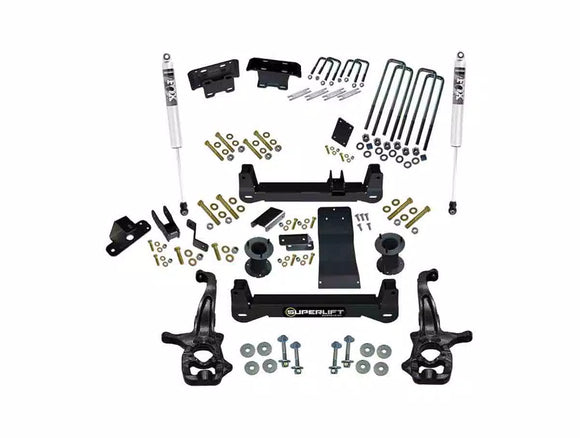

This kit includes front knuckles, front strut spacers, ¼” plate steel control arm cross-members, differential drops, differential skid plate, fabricated rear blocks, U-bolts, and rear shocks.  All required parts are included to make sure your Chevrolet Silverado or GMC Sierra handles and performs in all conditions.

Features:

• Designed using Original Equipment (OE) CAD data
• Differential does not have to be cut
• Retains stock track width
• Clearance up to a 35” tire
• Cross-members constructed out of ¼” plate steel
• Rear Shocks options: Superlift or Bilstein or Fox
• Corrects Front to Rear factory rake for a more level stance
• Anti-Wrap Fabricated Rear blocks and U-bolts for rear lift
• Grade 8 Hardware
• Backed by our Limited Lifetime Warranty

Benefits:

• Retains OEM alignment specifications
• No excessive ball joint or steering components
• CV axle angles are in the stock parameters
• Maintains OEM like ride quality and handling characteristics

Notes:

• Does not Fit with Factory Wheels
• 20 inch or larger aftermarket wheels are required w/ 4.5” of back spacing
• Requires cutting and drilling
• Does not fit Trail Boss Edition or GMC AT4
• Does not work with GM 1500 Models that include adaptive Ride Control
• Some minor trimming may be required in order to clear tires larger than 35”
• Do Not combine with any other suspension lift
• Due to GM’s larger Front Brake set up on the 2019-2020 models, check with the aftermarket wheel manufacturer for wheel compatibility. It is highly recommended that all tire and wheel combinations should be test fitted prior to installation
  • Installation time: 7-8 hours
  • Difficulty level: 2 of 5



  Notes:

  • Does not Fit with Factory Wheels
  • 20 inch or larger aftermarket wheels are required w/ 4.5” of back spacing
  • Requires cutting and drilling
  • Does not fit Trail Boss Edition or GMC AT4
  • Does not work with GM 1500 Models that include adaptive Ride Control
  • Some minor trimming may be required in order to clear tires larger than 35”
  • Do Not combine with any other suspension lift
  • Due to GM’s larger Front Brake set up on the 2019-2020 models, check with the aftermarket wheel manufacturer for wheel compatibility. It is highly recommended that all tire and wheel combinations should be test fitted prior to installation

  DOWNLOAD INSTALL GUIDE

  • 2019-2022 Chevrolet Silverado 1500 High Country 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 Chevrolet Silverado 1500 LT 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 Chevrolet Silverado 1500 LTZ 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 Chevrolet Silverado 1500 RST 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 Chevrolet Silverado 1500 SSV 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 Chevrolet Silverado 1500 WT 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2021 GMC Sierra 1500 Base 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 GMC Sierra 1500 Denali 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 GMC Sierra 1500 Elevation 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 GMC Sierra 1500 SLE 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD
  • 2019-2022 GMC Sierra 1500 SLT 6 in. Suspension Lift Kit With Fox 2.0 Shocks Does not fit GM 1500 AT4 or Trailboss Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation. 4WD

  Tire	Wheel	Backspacing (INCH)	Offset (MM)
  35X12.50X 20	20x9	4.5"	. -12MM
  35X12.50X 20	20x10	4.5"	. -24MM
  35X12.50X 22	22x9	4.5"	. -12MM
  35X12.50X 22	22x10	4.5"	. -24MM
  315/60 R20	20x9	4.5"	. -12MM
  315/60 R20	20x10	4.5"	. -24MM
  295/60 R22	22x9	4.5"	. -12MM
  325/R R22	22x10	4.5"	. -24MM
  • Recommended Tire and Wheel Combinations
  • Some minor Trimming maybe required
  • Due to GM larger Front Brake set up on the 2019 model, check with Aftermarket wheel manufacturer for wheel compatibility on 2019 vehicles
  • Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation.
