Superlift 16-20 Toyota Tacoma 4.5in Lift Kit w/ Rear Shadow Shocks

K252

Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability.  This 4.5 inch Lift kit for the 2016-2020 Toyota Tacoma 2 and 4WD is a ready for the road and the trail. Superlift’s geometry, steering timing, linkage angles, driveshaft, and CV axle operating angles yields optimal component service life and exceptional drivability.

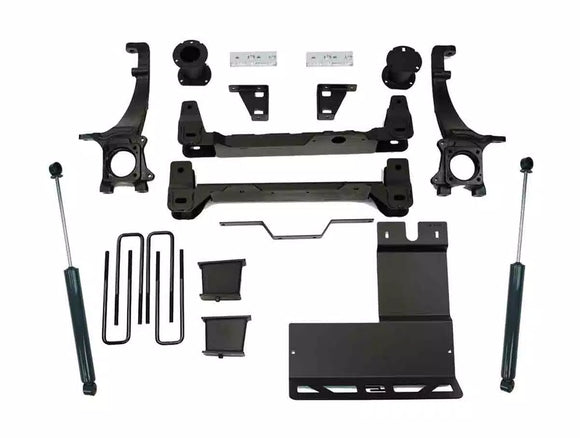

This kit includes front knuckles, front strut spacers, cross-members, belly pan skid plate, bump stop brackets, a rear block and u-bolt kit, and rear shocks. All require parts are included to make sure your Toyota Tacoma rides and handles just like stock.

Features:

• Replacement Knuckle Style lift kit
• HD belly pan for differential protection
• Shadow Series rear shock absorbers
• Backed by our Limited Lifetime Warranty

Benefits:

• Increased Ground Clearance
• OE Alignment Specs
• OE Like Ride Quality
• Levels front to rear of the vehicle

Technical Notes:

• Requires minor cutting and drilling
• DOES NOT fit T/X Baja models
• DOES NOT fit XSP-X models
• WILL fit 6-Lug Prerunner models
• Requires aftermarket wheels - Does NOT work with factory wheels

  Tire	Wheel	Backspacing	Offset
  32 x 10.50R17	17 x 9	-	0 to -12
  32 x 10.50R18	18 x 9	-	0 to -12
  32 x 10.50R20	20 x 9	-	0 to -12



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 7-8 Hours
  • Difficulty level: 3 to 5



  NOTE:

  • Requires minor cutting and drilling
  • DOES NOT fit T/X Baja models
  • DOES NOT fit XSP-X models
  • WILL fit 6-Lug Prerunner models
  • Requires aftermarket wheels - Does NOT work with factory wheels

  DOWNLOAD INSTALL GUIDE
