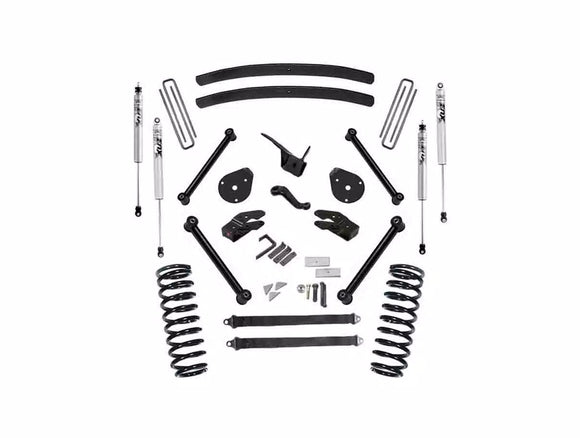

Superlift 94-99 Ram 2500/3500 4WD Diesel/V 10 5in Lift Kit w/ Fox 2.0 Shocks

K334F

Superlift Suspension Systems now available with Superlift shocks OR Fox® Shocks:

This Superlift lift kit is a complete replacement coil spring suspension lift kit for the 1994-1995 Ram 2500 | 3500 that provides 5 inches of lift height.  This kit is available with either front and rear Superlift Shocks or front and rear Fox® Performance Series 2.0 IFP Shocks.

Features | benefits:

• Relocation the track bar prevents the steering wheel kick and stud bind
• Front Anti-sway bar relocation brackets prevent bar pre-load
• Tubular radius arms improve drivability
• Front | Rear Compression travel stop brackets eliminate over-conpression
• Front Extension travel limiting straps prevent over-extension
• Drop Pitman arm relieves drag link angle
• Front and Rear Shocks
• Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks
• Add-a-Leafs
• Backed by our Limited Lifetime Warranty

  Tire	Wheel	Backspacing	Offset
  35x 12.5	-	4.5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 7 hours
  • Difficulty level: 4 of 5



  DOWNLOAD RAM 1500 INSTALL GUIDEDOWNLOAD RAM 2500/3500 INSTALL GUIDE

  • 1994-1999 Dodge Ram 2500 DIESEL 5 in. Suspension Lift Kit With Fox 2.0 Shocks 4WD
  • 1994-1999 Dodge Ram 3500 DIESEL 5 in. Suspension Lift Kit With Fox 2.0 Shocks 4WD
