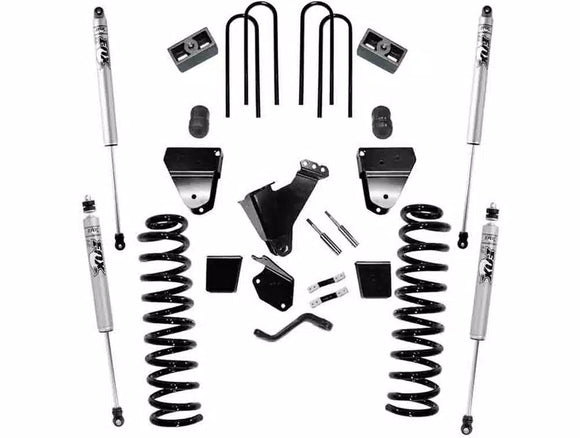

Superlift 05-07 Ford F-250/F-350 SuperDuty 4WD Diesel 6in Lift Kit w/ Fox 2.0 Shocks

K806F

Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 6” Lift for the 2005-2007 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality.  Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, Drop pitman arm, front anti-sway bar extensions, and steering stabilizer bracket.  Rear lift is achieved by lift blocks.

Complete your 6-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.  Shock Options for this kit are available in the following: Superlift OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Radius Arm Drop Brackets
• Front Compression Travel-Stop Brackets prevent suspension over-compression
• Drop pitman arm reduces drag link angle
• Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
• Threaded front anti-sway extensions do not require cutting or welding
• Proper factory steering stabilizer angles is restored for optimum operation
• Front and Rear Shock options: Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Aligns to OEM specifications
• Maintains ride quality and handling characteristics

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.  Part # 9669
• For Superduty’s equipped with the 1-7/8” blocks and top overloads, Part # 11874 will need to be purchased in addition to the lift kit

  Tire	Wheel	Backspacing	Offset
  37 x 12.5	17 x 9	4.5	-
  37 x 12.5	18 x 9	4.5	-
  37 x 12.5	20 x 9	4.5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 7-8 hours
  • Difficulty level: 3 of 5

  DOWNLOAD INSTALL GUIDE

  • 2005-2007 Ford F-250 Super Duty DIESEL 6 in. Suspension Lift Kit With Fox 2.0 Shocks Without 4-Link Conversion 4WD
  • 2005-2007 Ford F-350 Super Duty DIESEL 6 in. Suspension Lift Kit With Fox 2.0 Shocks Without 4-Link Conversion 4WD
