Superlift 11-16 Ford F-250/F-350 SuperDuty 4WD Diesel 6in Lift Kit w/ Fox 2.0 Shocks

K878F

Superlift Suspension Systems now available with Superlift Shocks OR BILSTEIN Shocks or Fox® Shocks:

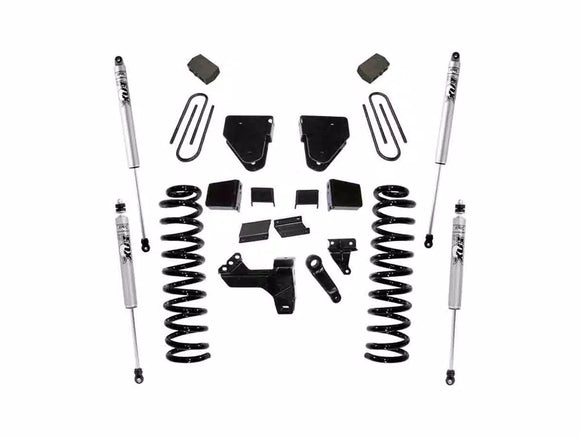

This 6” Lift for the 2008-2010 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality.  Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, Drop pitman arm, front anti-sway bar extensions, and steering stabilizer bracket.  The OE Radius Arms are relocated to provide the proper caster correction.

Complete your 6-inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.  Shock Options for this kit: Superlift OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Features | Benefits:

• Engine Specific Coil Springs ensure ride quality while rear blocks maintain load capacity
• Radius Arm Drop Brackets
• Drop pitman arm reduces drag link angle
• Front Compression Travel-Stop Brackets prevent suspension over-compression
• Anti-sway Bar Extensions prevent bar preload
• Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
• Stabilizer bracket restores factory steering stabilizer angle for optimum operation
• Rear lift via 2.5” Blocks with Add-a-leafs
• Front and Rear Shock options– Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty
• Aligns to OEM specifications
• Maintains ride quality and handling characteristics

NOTES:

• If the Ford F-250 | F-350 Super Duty is equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required, Part #
• This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 pickups with the factory 1 7/8 Inch blocks WITHOUT top mount overloads. For Super Duty’s equipped with the 1-7/8 inch blocks and top overloads, part # 11734 will need ot be purchased in addition to the lift kit. If your vehicle is equipped with the factory top mount overloads or 3.71 inch blocks, a longer rear u-bolt will be required and is available from superlift.com.  Please refer to the option’s list or call our technical support line for additional details – 800-551-4955.

  Tire	Wheel	Backspacing	Offset
  37 x 12.5	17 x 9	4.5	-
  37 x 12.5	18 x 9	4.5	-
  37 x 12.5	20 x 9	4.5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 8 hours
  • Difficulty level: 3 of 5



  NOTE: If the Ford F-250 | F-350 Super Duty is equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required, Part #9669

  NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 pickups with the factory 1 7/8 Inch blocks WITHOUT top mount overloads. For Super Duty’s equipped with the 1-7/8 inch blocks and top overloads, part # 11734 will need ot be purchased in addition to the lift kit. If your vehicle is equipped with the factory top mount overloads or 3.71 inch blocks, a longer rear u-bolt will be required and is available from superlift.com.  Please refer to the option’s list or call our technical support line for additional details – 800-551-4955.

  DOWNLOAD INSTALL GUIDE

  • 2011-2016 Ford F-250 Super Duty DIESEL 6 in. Suspension Lift Kit With Fox 2.0 Shocks Without 4-Link Conversion 4WD
  • 2011-2016 Ford F-350 Super Duty DIESEL 6 in. Suspension Lift Kit With Fox 2.0 Shocks Without 4-Link Conversion 4WD
