Superlift 07-18 Jeep Wrangler JK 2 Door 4in Lift Kit w/ Fox Shocks

K905F

Superlift Suspension Systems now available with Superlift Shocks OR Fox® Shocks:

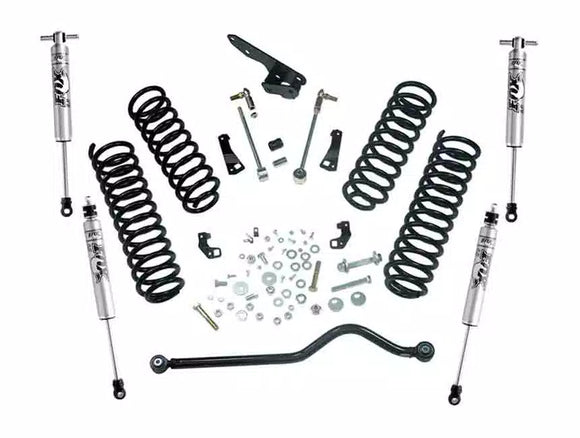

This is the Superlift 4” suspension lift kit for the 2007-2018 Jeep Wrangler JK

Superlift worked behind the scenes with OE Engineers to develop these lifted coil springs. The result is the best ride and handling characteristics of any 4” lift coil available.  They’re pre-set to minimize settling and guarantee a consistent ride height.  This Superlift kit also includes an adjustable front track bar with forged ends and Superlift’s Lifetime Warranted REFLEX bushings.

The adjustable length allows you to fine-tune the suspension given winch bumper combinations etc. and the bushings are a dual durometer design built to handle extreme angles and greatly reduce NVH over standard poly bushings or heim-joint ends.

Included for the rear is a frame mounted track bar relocation bracket. This kit also includes replacement rear sway bar links, adjustable cam-bolts, brake line extension brackets and Superlift shock OR Fox 2.0 Shocks

Options include: front and rear REFLEX Control Arms, front sway bar quick disconnects, rear REFLEX adjustable track bar, and factory replacement, high-clearance single or high-clearance dual steering stabilizers. Each stabilizer design is available with Superlift or SS series cylinders by Bilstein.

Features:

• Adds clearance up to 35” diameter tires
• Pre-set JK specific replacement coil springs to minimize settling
• Sway bar correction
• Optional add-on suspension components – Adjustable Track bars and Stabilizers
• Shock Options: Superlift Shocks or Fox® 2.0 Shocks
• Backed by our Limited Lifetime Warranty

Benefits:

• Aligns to OE specifications
• Maintains performance ride quality and handling

Technical Notes:

• Optional compression stop kit is recommended for aggressive off-road use with 35-inch tires

  Tire	Wheel	Backspacing	Offset
  35 x 12.5	17 x 9	4 - 4.75	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 4 hours
  • Difficulty level: 2 of 5

  NOTE: Compression dampener kit # 5714 is required to prevent tire | fender scrub during full articulation with 35” tires.

  DOWNLOAD INSTALL GUIDE

  • 2007-2017 Jeep Wrangler 2 Door 4 in. Suspension Lift Kit With Fox 2.0 Shocks Without Reflex Control Arms With rear frame mounted track bar bracket 2 Door 4WD
  • 2018 Jeep Wrangler JK 2 Door 4 in. Suspension Lift Kit With Fox 2.0 Shocks Without Reflex Control Arms With rear frame mounted track bar bracket 2 Door 4WD
