Superlift 07-20 Toyota Tundra 4WD (Excl TRD Pro Rock Warrior/Xsp X) 6in Lift Kit w/ Fox Shocks

K962F

Superlift Suspension Systems now available with Superlift Shocks OR Fox® Shocks:

Superlift’s 6-inch lift kits for the 2007- 2020 Toyota Tundra are a great way to add height to your overall Tundra’s appearance and now feature Superlift Shocks OR Fox® Performance Series 2.0 IFP Shocks. Superlift’s Suspension Lift Kits have a strong, modern die-formed design constructed of solid steel giving your truck a strong suspension. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer. The 6-inch lift kit for the Toyota Tundra is a complete replacement knuckle kit.

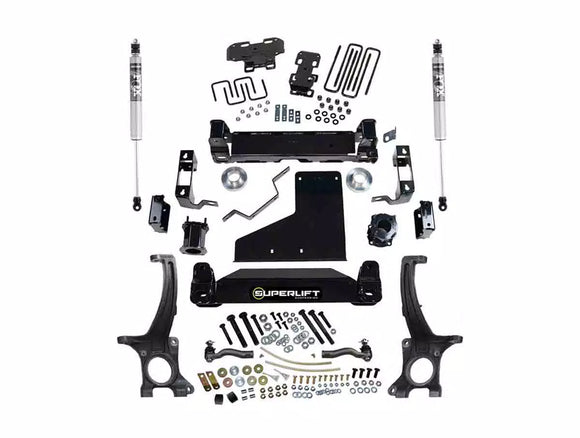

This kit includes front knuckles, front strut spacers, lower control arm cross-members, a rear block kit, and rear Superlift OR Fox® shocks.  All required parts are included to make sure your Tundra handles and performs in all conditions.

Features:

• Adds clearance up to 35” diameter tires
• Ductile Iron Steering Knuckles
• Full “Belly” Skid Plate.
• HD Outer Tie Rod Ends
• Rear lift is achieved with Block & U-bolt Kit
• Levels the truck front to rear
• Shock Options: Superlift Shocks or Fox® 2.0 Shocks
• Backed by our Limited Lifetime Warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• No excessive ball joint or steering components
• CV axle angles are in the stock parameters
• Maintains stock like ride quality and handling

Technical Notes:

• Does not fit Tundra Models – TRD Pro, Rock Warrior, Or XSP-X Models
• Will NOT work on TRD Pro (Bilstein Piggyback Strut) Models
• Cutting and Drilling is required
• Cannot run the factory 18” wheel
• Aftermarket 18” wheels require at 5” or less back spacing.
• See Recommend tire and wheel combinations
• Do Not combine with any other suspension lift

  Tire	Wheel	Backspacing	Offset
  35 x 12.5	18 x 9	5	-
  35 x 12.5	20 x 9	5.5	-
  35 x 12.5	22 x 9	5.5	-



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 8-9 Hours
  • Difficulty level: 4 to 5



  NOTE:

  • Does not fit Tundra Models – TRD Pro, Rock Warrior, Or XSP-X Models
  • Will NOT work on 2016 TRD Pro (Bilstein Piggyback Strut) Models
  • Cutting and Drilling is required
  • Cannot run the factory 18” wheel
  • Aftermarket 18” wheels require at 5” or less back spacing.
  • See Recommend tire and wheel combinations
  • Do Not combine with any other suspension lift

  DOWNLOAD INSTALL GUIDE

  • 2007-2021 Toyota Tundra 6 in. Suspension Lift Kit With Fox 2.0 Shocks 2WD/4WD
