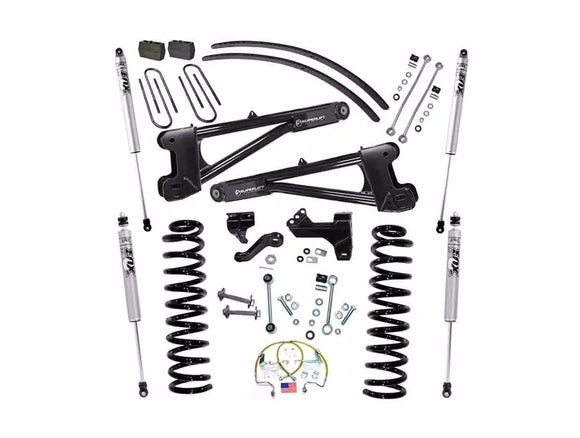

Superlift 08-10 Ford F-250 SuperDuty 4WD Diesel 6in Lift Kit w/ Repl Radius Arms/Fox 2.0 Shocks

K983F

Superlift Suspension Systems lift kits available in Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This is the Superlift 6” suspension lift kit is for the 2008-2010 Ford F-250 | F-350 Super Duty 4WD – Diesel Engine

OEM CAD models and the latest 3D software were used to precision engineer a suspension system that includes a set of massive, high-clearance tubular radius arms designed to bolt right into the factory mounts.  These heavy-duty radius arms use the giant press fit OEM Cleveite® bushing to reduce noise, vibration, and harshness(NVH).  They feature a “True Flat” jack plate surface, include alignment cam bolts and are offset to the inside allowing maximum turning radius and tire clearance.

Track bar relocation bracket, front sway bar correction, drop pitman arm, bump stop extension brackets, brake hose relocation brackets, rear lift (blocks & Add-a-leafs) and all the necessary hardware is included to make certain this package is complete with everything you need to the job right.  Shock Options available: Superlift OR Bilstein OR Fox®

Features:

• Replacement Front coil springs improve ride quality while rear blocks and add-a-leafs maintain load capacity
• High Clearance Replacement Radius Arms with Cleveite® OE Style rubber bushings
• Drop Pitman arm included
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear Shock Options: Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
• If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11664 will need to be purchased in addition to the lift kit. If truck equipped with 3.71-inch block and top mount overloads, part #11684 is required.

  Tire	Wheel	Backspacing	Offset
  37 x 12.5	17 x 9	4.5	-
  37 x 12.5	18 x 9	4.5	-
  37 x 13.5	20 x 10	-	-12 to -24



  IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.



  • Installation time: 6-7 hours
  • Difficulty level: 3 of 5

  NOTES:

  • If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
  • If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11664 will need to be purchased in addition to the lift kit. If truck equipped with 3.71-inch block and top mount overloads, part #11684 is required.

  DOWNLOAD INSTALL GUIDE

  • 2008-2010 Ford F-250 Super Duty DIESEL With Replacement Radius Arms With Fox 2.0 Shocks 6 in. SuspensionLift Kit 4WD
  • 2008-2010 Ford F-350 Super Duty DIESEL With Replacement Radius Arms With Fox 2.0 Shocks 6 in. SuspensionLift Kit 4WD
