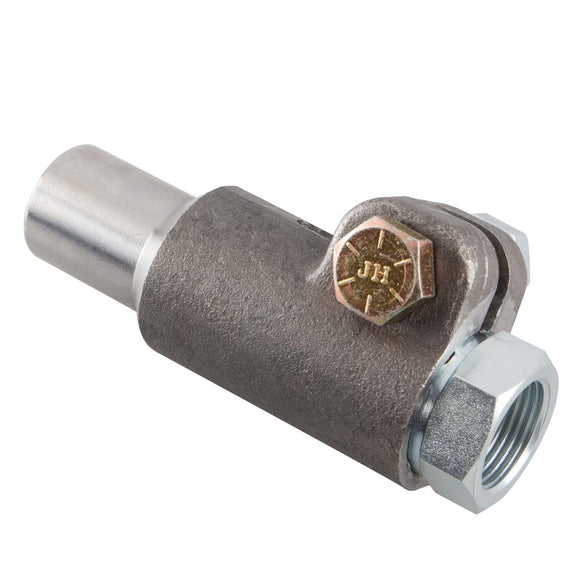

Synergy Double Adjuster Tube Adapter 1 1/4in LHT 1 3/8 ID Tube

3620-1213 Fitments:
Part #Description
3620-0714Double Adjuster & Tube Adapter, 7/8"-14 Left Hand Thread, 1" ID Tube
3620-0718Double Adjuster & Tube Adapter, 7/8"-18 Left Hand Thread, 1" ID Tube
3620-1011Double Adjuster & Tube Adapter, 1"-14 Left Hand Thread, 1-1/8" ID Tube
3620-1213Double Adjuster & Tube Adapter, 1-1/4" - 12 Left Hand Thread, 1-3/8" ID Tube
3620-1214Double Adjuster & Tube Adapter, 1-1/4" - 12 Left Hand Thread, 1-1/2" ID Tube
Features:
The Synergy Double Adjuster & Tube Adapter is designed to eliminate the need for jam nuts that are normally used when building link suspension & steering systems
The use of the Double Adjuster allows the suspension/steering link to be adjusted without removal
The Double Adjuster allows the user to fine-tune the suspension/steering geometry by loosening the pinch bolt and turning the adjuster sleeve
Ideal for link suspension designs with weld on bushings/joints at one end or bent suspension links
The weld on tube adapter is made from solid stock 1018 Steel
The tube adapter seals the link off from water or other debris entering the link which can cause damage over time
An integrated drain hole lets any water that enters the threads of the adapter drain out
Includes:
(1) Tube Adapter with Pinch Bolt Slit and Tubes
(1) Zinc Plated Double Adjuster Sleeve to be used with a Thread Shank Rod End
(1) Pinch Bolt Hardware
All Adjusters Use A Left Hand Threaded Rod End or Johnny Joint
