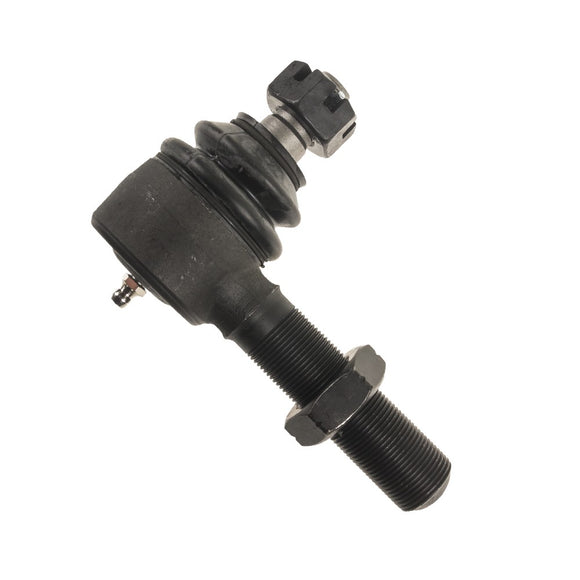

Synergy 07-18 Jeep Wrangler JK/JKU HD Tie Rod End Metal On Metal 7/8-18 LH

4131-L The Synergy Jeep Heavy Duty Replacement Tie Rod Ends are the exact replacement ends for your Synergy Jeep Steering Kits. Forged housings surrounding fully greaseable, sintered metal on metal bushings provide long-lasting, high performance ends. With studs made from 4140 steel and a larger shank, these rod ends outperform and outlast all other OEM and aftermarket options.
Fitment:
Synergy Part #FitmentDriver Side
Tie Rod EndPassenger Side
Tie Rod EndDriver Side
Tie Rod End BootPassenger Side Tie
Rod End Boot
8000-01JK / JKU Drag Link4139-L4131-L4131-014131-01
8002-15JK / JKU Tie Rod4139-L4131-L4131-014131-01
8121-01TJ / LJ / XJ / ZJ / MJ Tie Rod4135-L 4135-R4131-014131-01
8121-02TJ / LJ / XJ / ZJ / MJ Drag Link4135-L4137-L4131-014131-01
8155-01TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar
4135-L-4131-01-
8800-01JL / JLU / JT Drag Link4162-L4163-L4131-014131-01
8802-01JL / JLU / JT Tie Rod4163-L4164-L4131-014131-01
Tie Rod End Specs:
Part #DescriptionThreadTaperStyle
4131-LHD Tie Rod End, Left Hand Thread for JK's7/8-18 Left Hand1:8 Taper (7.125 DEG INCL ANGLE)Standard
4131-RHD Tie Rod End, Right Hand Thread for JK's7/8-18 Right Hand1:8 Taper (7.125 DEG INCL ANGLE)Standard
4135-LHD Tie Rod End, Left Hand Thread for TJ/XJ/ZJ's7/8-18 Left Hand1:8 Taper (7.125 DEG INCL ANGLE)Standard
4135-RHD Tie Rod End, Right Hand Thread for TJ/XJ/ZJ's7/8-18 Right Hand1:8 Taper (7.125 DEG INCL ANGLE)Standard
4137-LHD Tie Rod End, Left Hand Thread for TJ/XJ/ZJ's7/8-18 Left Hand1:8 Taper (7.125 DEG INCL ANGLE)Single Plane
4139-LHD Tie Rod End, Left Hand Thread for JK's7/8-18 Left Hand1:8 Taper (7.125 DEG INCL ANGLE)Single Plane
4161-LHD Tie Rod End, Left Hand Thread for JL1-14 Left Hand1:6 Taper (9.5 DEG INCL ANGLE)Single Plane
4162-LHD Tie Rod End, Left Hand Thread for JL / JT Drag Link1-14 Left Hand1:8 Taper (7.125 DEG INCL ANGLE)Single Plane
4163-LHD Tie Rod End, Left Hand Thread for JL / JT Drag Link and Tie Rod1-14 Left Hand1:6 Taper (9.5 DEG INCL ANGLE)Standard
4164-LHD Tie Rod End, Left Hand Thread for JL / JT Tie Rod1-14 Left Hand1:6 Taper (9.5 DEG INCL ANGLE)Single Plane
4166-LConversion Tie Rod End (Pitman side). Adapts 8000-01 Drag Link for
JL / JT with Ultimate Dana 60 axle housings only.7/8-18 Left Hand1:8 Taper (7.125 DEG INCL ANGLE)Single Plane
Benefits:
Engineered with grease grooves in the ball bearings, achieving the longest lasting metal on metal rod end on the market with maximum lubrication and wear resistance
Eliminating the nylon ball race allows for a larger ball bearing and increased strength
The spring loaded bearing design keeps pressure on the bearings and the joint tight as it wears, preventing premature play
Outperforms factory and all other aftermarket style tie rod ends by offering a larger shank with no stress riser (doesn't neck down at base), preventing premature failure
Features:
Fully greaseable sintered metal on metal bushing design has high wear resistance
Precision engineered grease grooves in the OD of the induction heat treated ball bearing
Ultra-strong forged bearing housing made from 1018 steel
Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
Tie Rod End stud made from 4140 steel with an extra large shank
Heavy duty nitrile-butadiene rubber (NBR) boots and retaining springs
DynaFlo 1/4'-28 straight steel zinc grease zerk fittings with ball check
Notes:
These tie rod ends are replacements for Synergy MFG steering bars only; They will not replace a factory steering linkage end
Synergy High Performance Grease is the recommended grease for this product
Single Plane tie rod ends offer misalignment in one direction of movement only. This eliminates drag link flop on the products they are designed for
Zerk specs: DynaFlo 1/4'-28 straight steel zinc grease fittings with ball check
413X Exploded View
Comparison
GM 1 Ton Replacement w/ Nylon Bushing
