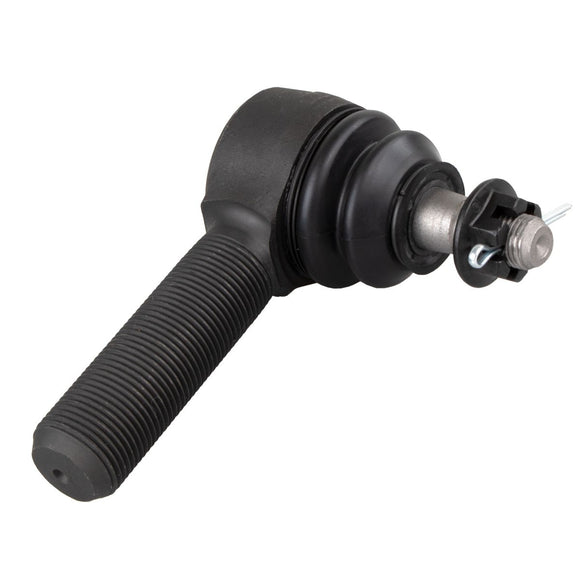

Synergy 94-13 Dodge Ram 1500/2500/3500 HD LH Thread Shank Tie Rod End For Drag Link Metal on Metal

4133-L The Synergy Dodge Ram Heavy Duty Replacement Tie Rod Ends are the exact replacement ends for your Synergy Dodge Ram Steering Kits. Forged housings surrounding fully greaseable, sintered metal on metal bushings provide long-lasting, high performance ends. With studs made from 4140 steel and a larger shank, these rod ends outperform and outlast all other OEM and aftermarket options.
Fitment:
Synergy Part #FitmentDriver Side
Tie Rod EndPassenger Side
Tie Rod EndDrivers Side
Tie Rod End
BootPassenger Side
Tie Rod End
Boot
8567-1394-99 Drag Link4136-L4160-L4131-014131-01
8568-0394-99 Tie Rod4136-L4136-L4134-024134-02
8567-1200-02 Drag Link4133-L4160-L4131-014131-01
8568-0200-02 Tie rod4134-L4134-L4134-024134-02
8567-1103-13 Drag Link4133-L4160-L4131-014131-01
8568-2103-13 Tie Rod4134-L4167-L4131-014131-01
8701-0114+ Drag Link4160-L4134-L4131-014131-01
8702-0114+ Tie Rod4138-L4138-L4134-024134-02
Tie Rod End Specs:
Part #DescriptionThreadTaperStyle
4133-LHD TIE ROD END, DODGE DRAGLINK1-14 Left Hand UNF Thread1:8 TAPER (7.125 DEG INCL ANGLE)Standard
4134-LHD TIE ROD END, DODGE TIE ROD1-14 Left Hand UNF Thread1:6 TAPER (9.5 DEG INCL ANGLE)Standard
4136-LHD TIE ROD END, DODGE TIE ROD1-14 Left Hand UNF Thread1:8 TAPER (7.125 DEG INCL ANGLE)Standard
4138-L (4134-02
Dust Caps Required)HD TIE ROD END, DODGE TIE ROD1 1/4-12 Left Hand UNF Thread1:6 TAPER (9.52 DEG INCL ANGLE)Standard
4160-LHD TIE ROD END, DODGE DRAG LINK1-14 Left Hand UNF Thread1:8 TAPER (7.155 DEG INCL ANGLE)Single Plane
4167-LHD TIE ROD END, DODGE TIE ROD1-14 Left Hand UNF Thread1:6 TAPER (9.52 DEG INCL ANGLE)Single Plane
Benefits:
Engineered with grease grooves in the ball bearings, achieving the longest lasting metal on metal rod end on the market with maximum lubrication and wear resistance
Eliminating the nylon ball race allows for a larger ball bearing and increased strength
The spring loaded bearing design keeps pressure on the bearings and the joint tight as it wears, preventing premature play
Outperforms factory and all other aftermarket style tie rod ends by offering a larger shank with no stress riser (doesn't neck down at base), preventing premature failure
Features:
Fully greaseable sintered metal on metal bushing design has high wear resistance
Precision engineered grease grooves in the OD of the induction heat treated ball bearing
Ultra-strong forged bearing housing made from 1018 steel
Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
Tie Rod End stud made from 4140 steel with an extra large shank
Heavy duty nitrile-butadiene rubber (NBR) boots and retaining springs
DynaFlo 1/4'-28 straight steel zinc grease zerk fittings with ball check
Includes:
4133-L4134-L4136-L4138-L4160-L4167-L
(1) Standard HD Tie Rod End(1) Standard HD Tie Rod End(1) Standard HD Tie Rod End(1) Standard HD Tie Rod End(1) Single Plane HD Tie Rod End(1) Single Plane HD Tie Rod End
Notes:
Fits all 94-current Dodge Ram Synergy Steering Kits - part numbers 8525-XX or 8725-XX
Part numbers 4134-L, 4136-L & 4138-L require HD tie rod low misalignment boot and caps when used on tie rod part numbers 8568-02, 8568-03 & 8702-01
If upgrading to 4167-L for the 03-13 Synergy Tie Rod - no misalignment caps are necessary
Synergy High Performance Grease is the recommended grease for this product
413X Exploded View
Comparison
GM 1 Ton Replacement w/ Nylon Bushing
