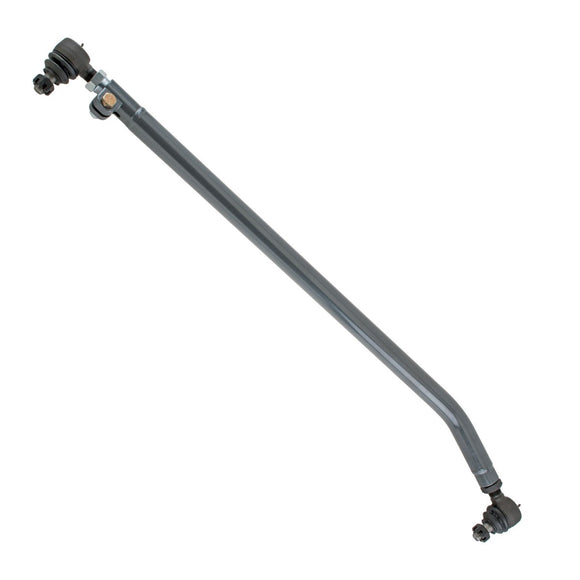

Synergy 07-18 Jeep Wrangler JK/JKU HD Drag Link

2227981 The Synergy Jeep JK / JKU Heavy Duty Drag Link Kit is designed specifically for the JK platform. Improving upon the success of our previous drag link, we use heavy duty USA made DOM capped with our Heavy Duty Tie Rod Ends to prevent unwanted drag link flop and offer the strongest connection to the road. With significantly improved lateral stiffness over stock this drag link will hold up to bigger tires and aggressive off road driving. Equipped You will not find a better drag link on the market!
Fitment:
Part #Fitment
8000-012007 - 2017 Jeep JK / JKU
Benefits:
Larger tubing size than previous design improves drag link strength offering a more direct connection to the road and trail compared to stock
Greaseable Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock, with a driver side single plane tie rod end to eliminate drag link flop
Drag Link Flip Adapter is NOW INCLUDED for those who will be converting to high steer for straightforward install and no additional purchases necessary
Fully adjustable while installed, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
Features:
Drag link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter
Synergy Heavy Duty Metal on Metal Tie Rod Ends, fully greaseable with heat treated components
Precision manufactured from 1.5 inch x .250 wall USA made DOM tubing
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy fine-tuning
100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Passenger side tie rod end is interchangeable between Synergy Tie Rod and Synergy Drag Link, keeping it simple
Min/Max:
Measured from center of bolt hole to center of bolt hole
Minimum collapsed length: 38.75 inch
Maximum extended length: 41.25 inch
Includes:
8000-01
(1) Heavy Duty Drag Link
(1) Synergy Tie Rod End Flip Adapter
(1) Pinch Bolts & Grade 8 Hardware
(1) Synergy Double Adjuster Sleeves
Notes:
Supersedes part number 8001
Replacement Tie Rod Ends: 4139-L and 4131-L
Drag Link is designed to be used in the stock location for up to 3 inch lift heights; For 3-6 inch lift heights the drag link should be flipped for a high steer setup
High Steer setup requires the drag link to be relocated to the top of the steering knuckle used in conjunction with a raised front axle side track bar relocation bracket (See Synergy 8055 or 8812-01)
Rear track bar should ideally be raised a similar amount at the axle with one of our track bar relocation brackets - weld on, 2-3" bolt on, 3"+ bolt on
High steer setup requires 16 inch or larger wheel diameter with a maximum 4-3/4 inch backspacing or wheel spacer with factory wheel setup; 4-1/2 inch back spacing is recommended
Right hand drive (RHD) compatible
Installation Instructions
