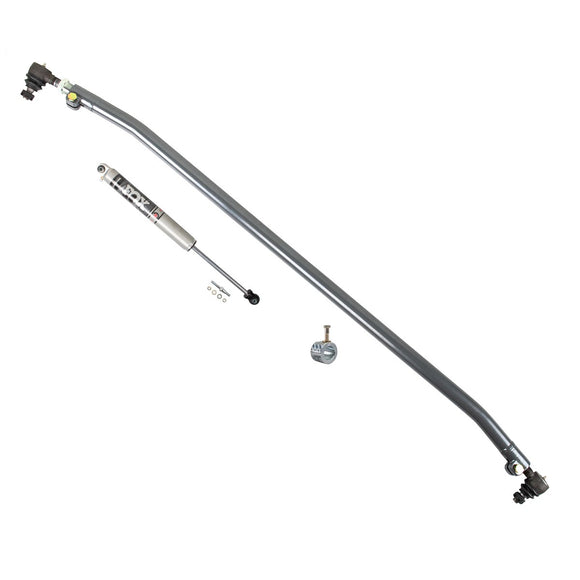

Synergy Jeep JK Heavy Duty 1.5in Tie Rod

8002-15 The Synergy Jeep JK / JKU 4130 Heat Treated Chromoly Tie Rod is a direct bolt in to the JK / JKU platform for an immediate upgrade in steering strength and feel. Our Double Adjuster Sleeve and Pinch Bolt Assembly makes adjustment easy while still installed. Capped with our Heavy Duty Tie Rod Ends, including a single plane end to prevent unwanted movement. Pair with our Heavy Duty Drag Link and Track Bar for a bulletproofed steering system to tackle any terrain.
Fitment:
Part #Fitment
8002-152007 - 2017 Jeep JK / JKU
Benefits:
Heat-treated chromoly steel is over 200% stronger than stock, preventing bending or breakage in the roughest terrain
Fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
Precision bent to clear sway bar mounts and most aftermarket diff covers
Our fully greaseable Metal on Metal Tie Rod Ends provide exceptional strength, eliminate unwanted tie rod flop, and support hydro-assist
Features:
Precision engineered and CNC bent from 1.50" x 0.188 wall 4130 heat treated chromoly
Synergy Double Adjuster Sleeve for easy adjustment
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Lengths:
Measured in a straight line from zerk fitting to zerk fitting
MAX EXTENDED: 60.4375"
MIN COLLAPSED: 58.188"
Includes:
8002-15
(1) Heavy Duty Tie Rod
(2) Synergy Tie Rod Ends
(2) Pinch Bolts & Grade 8 Hardware
(1) Synergy Double Adjuster Sleeves
Notes:
Supersedes Part Number: 8002, Synergy 1-3/8" diameter JK HD Tie Rod
Requires 16" or larger wheel diameter
Tie rod requires the use of a maximum 4.75" backspace wheel or the use of a wheel spacer on factory wheel; 4.5" back spacing is recommended
Replacement tie rod ends: 4131-L and 4139-L
For use with a stabilizer, this kit requires the use of stabilizer clamp part number 4050-50 or 8007-03 stabilizer relocation kit
Recommended to be used with the Synergy Tuned Fox IFP Steering Stabilizer
Compatible with Reid Racing High Steer Knuckles (JK001)
Installation Instructions
