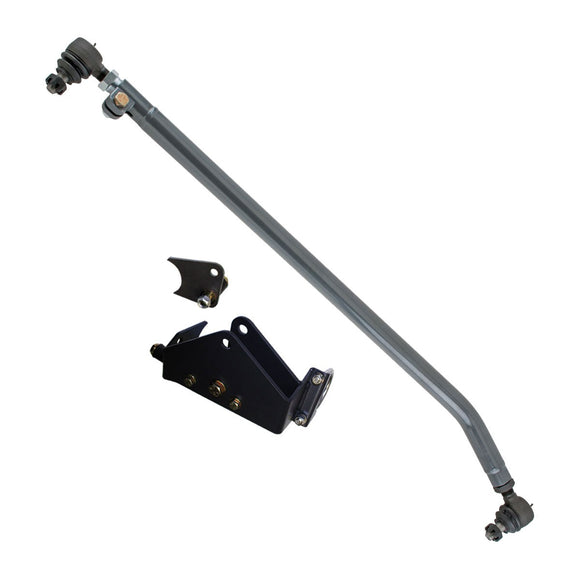

Synergy 07-18 Jeep Wrangler JK/JKU Front Steering Correction Kit

8011 Features:
Synergy JK Front Steering Correction kit
Designed to correct the wandering steering feeling that is sometimes experienced when lifting a Jeep JK
The drag link is made from 1.50 x .250 wall DOM tubing
Exclusive double adjuster sleeve and pinch bolt setup for adjustment while the drag link is installed
The track bar bracket raises the vehicles suspension roll center by 3.0"
Special bolt-on design strengthens the factory axle mount that is prone to failure
Raising the roll center reduces vehicle body roll and dramatically improves overall handling
The bracket relocates the factory or aftermarket steering stabilizer up and out of harms way
Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
Laser cut from 3/16" steel & 2 stage powdercoat finish for maximum strength and durability
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Includes:
8000-01 - Synergy JK Heavy Duty Drag Link Kit
8055 - Synergy JK Front Track Bar Bracket
Notes:
Use of the front track bar bracket requires the use of a minimum 3.0" bump stop spacer
High Steer setup requires the Drag Link to be relocated to the top of the steering knuckle.
Kit requires 16" or larger wheel diameter
Note: 8055 Track Bar Bracket is not recommended for hydro assist applications. For hydro assist, use 8012-13 or 8009-01 weld-on track bar brackets which include hydro assist tabs.
Note: If using a front adjustable track bar other than Synergy, make sure track bar can be collapsed far enough to center axle. Track bar will need to be close to stock length once relocated.
Installation Instructions (8000-01)
