Synergy 07-18 Jeep Wrangler JK 2 DR 2.0in Lift Starter Kit RHD Compatible

8020-20 The Starter System is designed for the Jeep enthusiast who wants to take the first step in getting a true suspension lift that replaces the factory springs. 2" Lift Springs replace the stock springs, allowing for the fitment of 33" tires or 35" tires with high fenders. Optional Shock Relocation Kit is available to allow the use of stock shocks, adding to the value of this entry level system.
Fitments:
Part #Description
8020-20JK / JKU 2-Door 2" Lift Starter Kit (Fits 33" Tires, 35" with High Fenders)
8040-20JK / JKU 4-Door 2" Lift Starter Kit (Fits 33" Tires, 35" with High Fenders)
Features:
Front and rear bump stop extension kits
Rear sway bar links so the factory rears can be used in the front
Front and rear brake line relocation kits
Optional shock relocation brackets so the stock shocks can be reused
Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
100% bolt on components assure an easy, trouble free installation with the use of basic hand tools**
Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
Synergy suspension systems are a modular design so all components are available separately
Compatible with Right Hand Drive (RHD) Vehicles

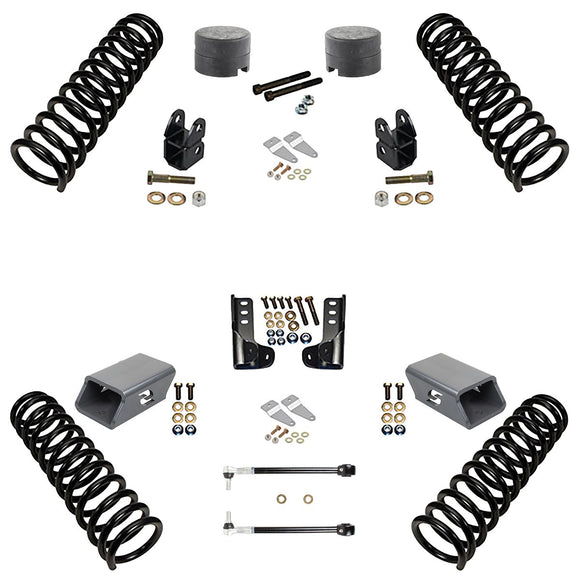

8020-20 / 8040-20 Includes:
8020-20 - 2-Door Jeep JK / JKU8040-20 - 4-Door Jeep JK / JKU
(1) 8063-10 2" Front Coil Springs
(1) 8064-10 2" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-20 Rear Bump Stop Extension, 2.0 Tall
(1) 8060-11 Rear Sway Bar Links
(1) 8083 Front Brake Line Relocation Kit
(1) 8084 Rear Brake Line Relocation Kit(1) 8063-20 2" Front Coil Springs
(1) 8064-20 2" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-20 Rear Bump Stop Extension, 2.0 Tall
(1) 8060-11 Rear Sway Bar Links
(1) 8083 Front Brake Line Relocation Kit
(1) 8084 Rear Brake Line Relocation Kit
Recommended Components:
(1) 8007-03 - Fox Hi-Mount Stabilizer Kit
Notes:
**Front & Rear shock mounting brackets (8019) are not compatible with aftermarket shocks and are required when using factory shocks. Use of Factory (stock) shocks requires a cut-off wheel for removal of the rear stock lower shock mounts.
Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.
Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.
RHD = Right Hand Drive
