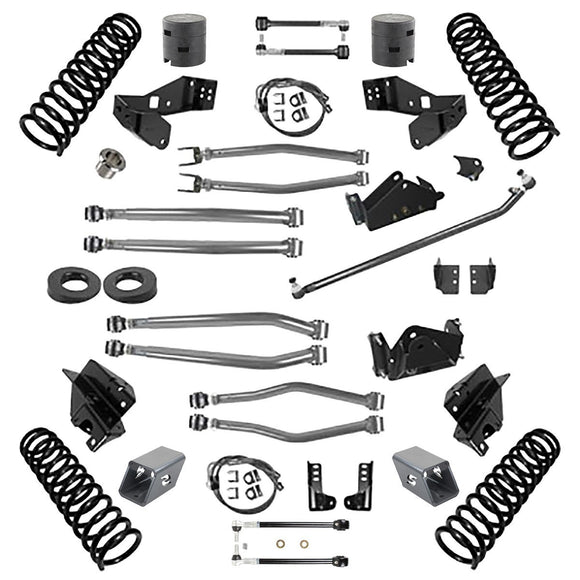

Synergy 07-18 Jeep Wrangler JKU 4 DR 3.0in Lift Stage 4 Suspension System

8044-30 The Stage 4 System is for those wanting maximum performance and capability without sacrificing ride quality. It carries over the quality components of the Stage 3 System, but improves upon them by swapping out the Standard Length Control Arms for Adjustable Long Arms and Long Arm Mounting Brackets. This is a 100% bolt on system with no welding required. This system will fit 35" tires with stock fenders or 37" tires with high fenders.
Fitments:
Part #Description
8024-30JK / JKU 2-Door 3" Lift Stage 4 Kit (Fits 35" Tires, 37" with High Fenders)
8044-30JK / JKU 4-Door 3" Lift Stage 4 Kit (Fits 35" Tires, 37" with High Fenders)
8024-30-RHDJK / JKU 2-Door 3" Lift Stage 4 Kit (RHD) (Fits 35" Tires, 37" with High Fenders)
8044-30-RHDJK / JKU 4-Door 3" Lift Stage 4 Kit (RHD) (Fits 35" Tires, 37" with High Fenders)
Features:
Stage 4 key features are front and rear track bar relocation brackets, flipped drag link, and all adjustable upper & lower long arms
Front and rear bump stop extension kits
Front and rear sway bar links
Front and rear extended stainless steel braided brake lines
Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
Lower control arms are manufactured from high quality crush resistant 2" X .250" Wall 1026 DOM tubing
Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
Front and rear lower shock mounts
Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle
Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
100% bolt on components assure an easy, trouble free installation with the use of basic hand tools
Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
Synergy suspension systems are a modular design so all components are available separately
Available For Right Hand Drive (RHD) Vehicles
Includes:
8024-30 / 8044-30 Includes:
8024-30 - 2-Door Jeep JK / JKU8044-30 - 4-Door Jeep JK / JKU
(1) 8063-20 3" Front Coil Springs
(1) 8064-20 3" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-30 Rear Bump-stop Extension, 3.0 Tall
(1) 8059-11 Front Sway Bar Links
(1) 8060-11 Rear Sway Bar Links
(2) 8066 Front/Rear Brake Line Kit
(1) 8056 Rear Track Bar Bracket
(1) 8055 Front Track Bar Bracket
(1) 8000-01 Drag Link
(1) 8030 Rear Long Arm Brackets
(1) 8031 Front Long Arm Brackets
(1) 8033 Front Long Arm Lower Control Arms
(1) 8035 Front Long Arm Upper Control Arms
(1) 8036 Rear Long Arm Lower Control Arms
(1) 8038 Rear Long Arm Upper Control Arms
(1) 8074 Rear Lower Shock Mounts
(1) 8073 Front Lower Shock Mounts
(1) 8097 Rear Coil Wedges(1) 8063-30 3" Front Coil Springs
(1) 8064-30 3" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-30 Rear Bump-stop Extension, 3.0 Tall
(1) 8059-11 Front Sway Bar Links
(1) 8060-11 Rear Sway Bar Links
(2) 8066 Front/Rear Brake Line Kit
(1) 8056 Rear Track Bar Bracket
(1) 8055 Front Track Bar Bracket
(1) 8000-01 Drag Link
(1) 8030 Rear Long Arm Brackets
(1) 8031 Front Long Arm Brackets
(1) 8033 Front Long Arm Lower Control Arms
(1) 8035 Front Long Arm Upper Control Arms
(1) 8036 Rear Long Arm Lower Control Arms
(1) 8038 Rear Long Arm Upper Control Arms
(1) 8074 Rear Lower Shock Mounts
(1) 8073 Front Lower Shock Mounts
(1) 8097 Rear Coil Wedges
8024-30-RHD / 8044-30-RHD Includes:
8024-30-RHD - 2-Door Jeep JK / JKU (RHD)8044-30-RHD - 4-Door Jeep JK / JKU (RHD)
(1) 8063-20 3" Front Coil Springs
(1) 8064-20 3" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-30 Rear Bump-stop Extension, 3.0 Tall
(1) 8059-11 Front Sway Bar Links
(1) 8060-11 Rear Sway Bar Links
(2) 8066 Front/Rear Brake Line Kit
(1) 8056-RHD Rear Track Bar Bracket (RHD)
(1) 8091 Front Track Bar Bracket (RHD)
(1) 8000-01 Drag Link
(1) 8030 Rear Long Arm Brackets
(1) 8031 Front Long Arm Brackets
(1) 8033 Front Long Arm Lower Control Arms
(1) 8035 Front Long Arm Upper Control Arms
(1) 8036 Rear Long Arm Lower Control Arms
(1) 8038 Rear Long Arm Upper Control Arms
(1) 8074 Rear Lower Shock Mounts
(1) 8073 Front Lower Shock Mounts
(1) 8097 Rear Coil Wedges(1) 8063-30 3" Front Coil Springs
(1) 8064-30 3" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-30 Rear Bump-stop Extension, 3.0 Tall
(1) 8059-11 Front Sway Bar Links
(1) 8060-11 Rear Sway Bar Links
(2) 8066 Front/Rear Brake Line Kit
(1) 8056-RHD Rear Track Bar Bracket (RHD)
(1) 8091 Front Track Bar Bracket (RHD)
(1) 8000-01 Drag Link
(1) 8030 Rear Long Arm Brackets
(1) 8031 Front Long Arm Brackets
(1) 8033 Front Long Arm Lower Control Arms
(1) 8035 Front Long Arm Upper Control Arms
(1) 8036 Rear Long Arm Lower Control Arms
(1) 8038 Rear Long Arm Upper Control Arms
(1) 8074 Rear Lower Shock Mounts
(1) 8073 Front Lower Shock Mounts
(1) 8097 Rear Coil Wedges
Notes:
2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.
Diesel models will require a set of spacers to be fabricated for installation. The transmission cross member is located further back on diesel models and the front long arm brackets will not sit flush to the cross member
Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded
Installation Instructions
