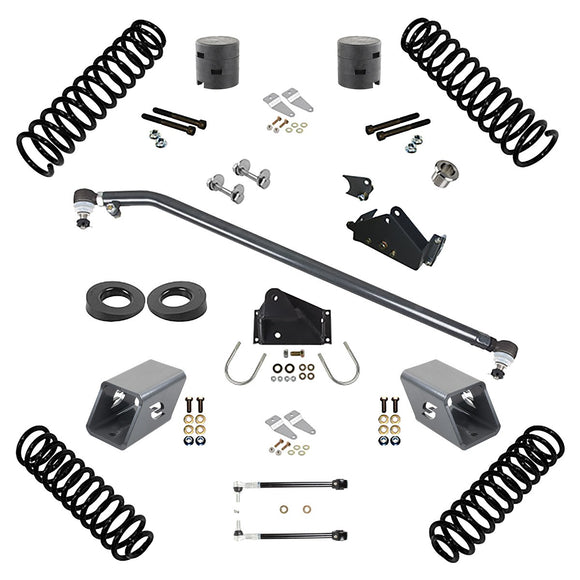

Synergy 07-18 Jeep Wrangler JKU 4 DR 3.0in Lift Stage 1.5 Suspension System

8045-30 The Stage 1.5 System increases the lift height to 3" with our 3" Progressive Coil Springs and takes full advantage of our Raised Rear Track Bar Bracket and Front Steering Correction Kit (8011) for optimal steering and suspension geometry. With the steering corrected for 3" of lift, this system will drive as good, if not better, than stock. This system will fit 35" tires with stock fenders or 37" tires with high fenders.
Fitments:
Part #Description
8025-30JK / JKU 2-Door 3" Lift Stage 1.5 Kit (Fits 35" Tires, 37" with High Fenders)
8045-30JK / JKU 4-Door 3" Lift Stage 1.5 Kit (Fits 35" Tires, 37" with High Fenders)
Fitment Notes:
2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.
3" and up lifts, aftermarket driveshafts are recommended
Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.
Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.
Requires 16" or larger wheel diameter
Features:
Stage 1.5 key features are front and rear track bar relocation brackets and flipped drag link
Front and rear bump stop extension kits
Rear sway bar links so the factory rears can be used in the front
Front and rear brake line relocation kits
Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
Control arm cam bolt kit to correct caster
Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
100% bolt on components assure an easy, trouble free installation with the use of basic hand tools
Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
Synergy suspension systems are a modular design so all components are available separately
Includes:
8025-30 / 8045-30 Includes:
8025-30 - 2-Door JK / JKU8045-30 - 4-Door JK / JKU
(1) 8063-20 3" Front Coil Springs
(1) 8064-20 3" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-30 Rear Bump Stop Extension, 3.0 Tall
(1) 8060-11 Rear Sway Bar Links
(1) 8082 Brake Line Relocation Kit
(1) 8004 Control Arm Cam Bolt Kit
(1) 8056 Rear Track Bar Bracket
(1) 8055 Front Track Bar Bracket
(1) 8000-01 Drag Link
(1) 8097 Rear Coil Wedges(1) 8063-30 3" Front Coil Springs
(1) 8064-30 3" Rear Coil Springs
(1) 8057-10 Snap-Lock Bump Stop Spacers
(1) 8858-30 Rear Bump Stop Extension, 3.0 Tall
(1) 8060 Rear Sway Bar Links
(1) 8082 Brake Line Relocation Kit
(1) 8004 Control Arm Cam Bolt Kit
(1) 8056 Rear Track Bar Bracket
(1) 8055 Front Track Bar Bracket
(1) 8000-01 Drag Link
(1) 8097 Rear Coil Wedges
Recommended Components:
(1) 8002-15 - Synergy Chromoly Tie Rod
(1) 8007-03 - Fox Hi-Mount Stabilizer Kit
(1) 8000-0202 (7/8") 7/8" Drill Bit for TRE Adapter
(1) 5017 - 2012+ Exhaust Spacer
