Synergy 07-18 Jeep Wrangler JK/JKU G9 Track Bar Hardware Kit Complete UCA/LCA

2246275 Features:
High strength hardware
Replaces the Lower Control Arm (LCA) & Upper Control Arm (UCA) hardware and specialized nut tabs that get destroyed from wheeling abuse
Replaces the Rear Track Bar (TB) bolts which often get worn out from service
Replaces the Front Track Bar Frame Side (TB) bolt on 2012+ JK with a 14mm bolt
Includes hardened extra thick washers that will not deform or contort like standard washers

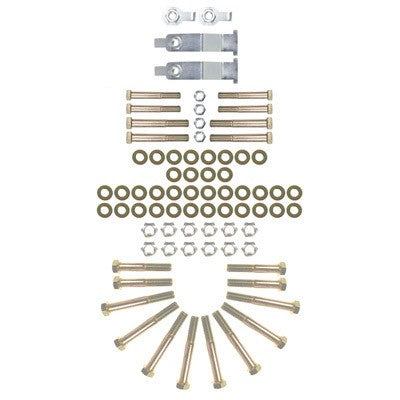

Complete Kit Includes:
(1) Lower Control Arm & Track Bar Hardware Kit (8050)
(8) 9/16-18 UNF x 4.0" long bolts (LCAs)
(4) 9/16-18 UNF x 3.0" long bolts (TBs)
(12) 9/16-18 UNF Stover top lock nuts
(24) 9/16" Extra Thick hardened flat washers
(1) M14-2.0 x 80mm bolt (2012+ Front Frame Side Track Bar Bracket)
(1) M14-2.0 Stover top lock nut
(1) Upper Control Arm Hardware Kit (8050-01)
(4) 9/16-18 UNF x 3.50" long bolts (RUCAs)
(4) M12 X 1.50 85MM (3.50") long bolts (FUCAs)
(4) M12 x 1.50 Stover top lock nuts
(4) 9/16" Extra Thick hardened flat washers
(8) 1/2" Extra Thick hardened flat washers
(2) Rear Upper Control Arm Nut Tab, Frame Side
(2) Rear Upper Control Arm Nut Tab, Axle Side
Installation Instructions
