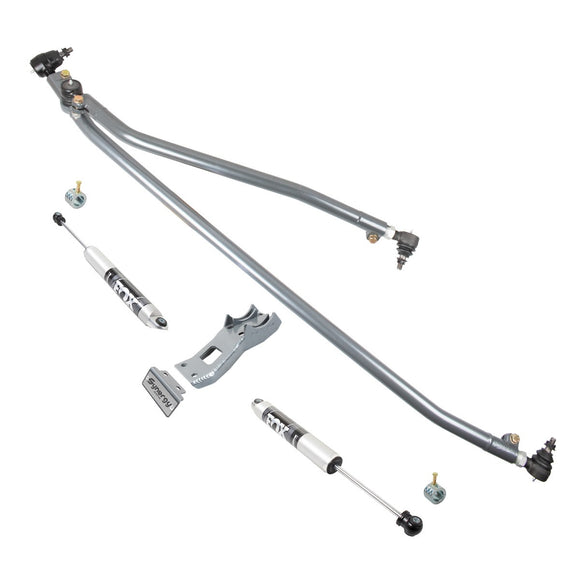

Synergy 03-13 Dodge Ram 1500/2500/3500 Heavy Duty Drag Link

8525-00 This Heavy Duty steering kit is a larger and stronger, bolt-on replacement for the stock steering. No drilling or reaming of the knuckles is required. It uses the updated factory T-style steering design to eliminate toe-change caused by Y-style steering. Using the factory T-style steering design also results in no induced bump steer inherent with most aftermarket "cross over" steering kits. The Tie Rod also uses a single plane low misalignment Tie Rod End to prevent unwanted Tie Rod "flop" which results in a dead spot in the steering when changing direction. The complete kit includes a heavy duty Drag Link, heavy duty Tie Rod, and Steering Stabilizer Mount Kit for use with stock or aftermarket steering stabilizers using a 1/2" mounting bolt.
Fitments:
2003-2013 Dodge Ram 2500 4x4
2003-2012 Dodge Ram 3500 4x4
2006-2008 Dodge Ram 1500 Mega-cab 4x4
Note: We cannot guarantee fitment with aftermarket differential covers. Known compatibility with the following diff covers: aFe Power
Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the Tie Rod), Synergy Part # 8525-01. The late model trucks use cross over steering (Drag link is attached to the knuckle and does not attach to the Tie Rod), Synergy Part # 8725-01. Please check what style you have before ordering.
Benefits:
Drag Link is bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles. (Vehicles over 4" of lift will require a drop pitman arm for compatibility)
Tie Rod is bent similar to the factory bar to clear sway bar mounts.
Provides 2" of additional ground clearance from stock tie rod
Fabricated clamp to retain factory or aftermarket stabilizer with 1/2" mounting bolt
Strongest Dodge Drag Link and Tie Rod on the market!
Features:
Drag Link is made from 1-1/2" x .250 wall DOM
Tie Rod is made from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength - 200% stronger than stock tie rod
Steering components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows adjustment of Drag Link and Tie Rod length without removing it from the vehicle
Metal on metal Synergy tie rod ends, with larger than stock, heat treated chromoly ball studs and shorter shank for greater strength, longevity, and connectivity to the road
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Includes:
8525-008525-018525-118525-21
(1) Synergy HD Drag Link
(1) Synergy HD Tie Rod
(1) 8567-11 - Synergy HD Drag Link
(1) Synergy HD Tie Rod
(1) 8568-10 - Synergy HD Steering Stabilizer Clamp(1) 8567-11 - Synergy HD Drag Link
(1) Synergy HD Tie Rod
(1) 8568-10 - Synergy HD Steering Stabilizer Clamp
(1) 6401-01 - Synergy Tuned Fox Steering Stabilizer(1) 8567-11 - Synergy HD Drag Link
(1) Synergy HD Tie Rod
(1) 8510-01 - Synergy Dual Stabilizer Bracket
(2) 4050-50 - Synergy Stabilizer Clamps
(2) 6401-01 - Synergy Tuned Fox Steering Stabilizer
Notes:
For 03-08 trucks using the stock pitman arm, switching to the Mopar pitman arm for 08.5+ trucks is recommended if not already equipped. Mopar P/N: 68039930AA
Recommended Fox Steering Stabilizers:
IFP - Internal Floating Piston (6401-01),
TS - Through Shaft (6402-03),
ATS - Advanced Through Shaft (6403-03)
Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components
Recommended Steering Stabilizers: 6401-01 (Synergy Tuned IFP), 6402-03 (Through Shaft), and 6403-03 (Adjustable Through Shaft)
