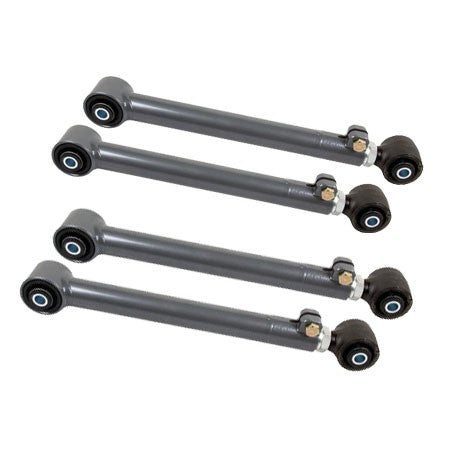

Synergy 00-09 Ram 2500/3500 4x4 Control Arm Kit Adjustable Arms Set Of 4 Arms

2421956 These control arm kits are designed for correcting caster and pinion angle on Dodge trucks that have been leveled or lifted. Kits include extended, fixed length, lower control arms or adjustable lower control arms, adjustable upper control arms, and stepped cam bolt eliminators designed exclusively for our Dual Durometer Bushings (DDB). Fixed length lower control arms are recommended for use with common leveling kits, while adjustable lower control arms are recommended for 3+" of lift or custom applications. Stepped cam bolt eliminators are included to eliminate the factory cam bolts and move all caster adjustability to the control arms.
Fitments:
Part #ApplicationDescription
8531-02
*1994-1999 1500 4x4 2500 / 3500
2000-2001 1500 4x4
2000-2009 2500/3500
2006-2008 1500 Megacab 4WD
Control Arm Kit with all Adjustable Arms
8531-03
2010-2013 2500
2010-2012 3500
Control Arm Kit with all Adjustable Arms
Note: *1994-1999 1500 4x4 2500 / 3500 *Requires 9/16'' hole to be drilled in mount
Benefits:
Control arms are designed and manufactured to maximize ground clearance
Allows the use of OEM wheels with larger tires without the requirement of an additional wheel spacer
Corrects castor and pinion angle on lifted trucks
Features:
Lower control arms made from high quality crush resistant 1.75" X .188 Wall 1026 DOM tubing
Upper control arms made from high quality crush resistant 1.50" X .156 Wall 1026 DOM tubing
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows for adjustment of control arm length without removing control arm mounting bolt
Feature Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
Stepped Cam Bolt Eliminators eliminate factory cam bolts allowing for even torque, increasing strength and extending bushing life
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Includes:
8531-02
1994-2009 Dodge Ram Control Arm Kit
8531-03
2010-2013 Dodge Ram Control Arm Kit
(1) 8551-04 - Adjustable Lower Control Arms
(1) 8553-01 - Adjustable Upper Control Arms
(1) 8565-02 - Stepped Cam Bolt Eliminators
(1) 8551-04 - Adjustable Lower Control Arms
(1) 8553-01 - Adjustable Upper Control Arms
(1) 8565-03 - Stepped Cam Bolt Eliminators
