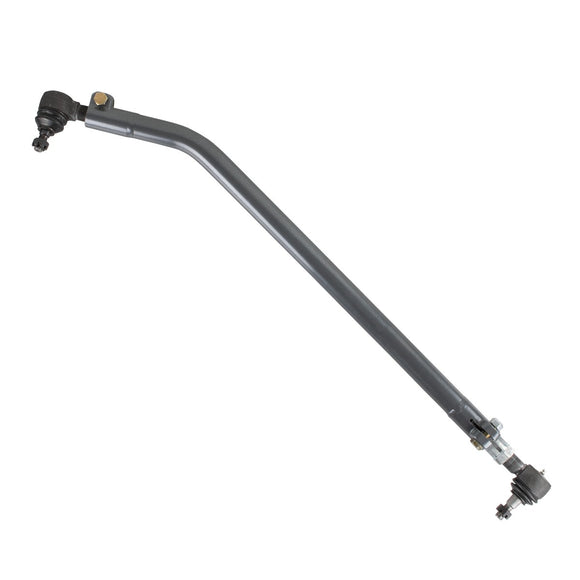

Synergy 03-13 Dodge Ram 1500/2500/3500 4x4 Heavy Duty Drag Link (w/ T-style steering)

2435378 The Synergy Heavy Duty Drag Link is a larger and stronger, bolt-on replacement for the stock drag link. No drilling or reaming is required. It uses the updated factory T-style steering design to eliminate toe-change caused by Y-style steering. Using the factory T-style steering design also results in no induced bump steer inherent with most aftermarket "cross-over" steering kits. When combined with the heavy duty tie rod (8568-21), Steering Stabilizer Mount Kit (8568-10), and Synergy tuned IFP stabilizer (6401-01) there is not a better steering kit on the market!
Fitments:
2003-2013 Dodge Ram 2500 4x4
2003-2012 Dodge Ram 3500 4x4
2006-2008 Dodge Ram 1500 Mega-cab 4x4
Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the Tie Rod), Synergy Part # 8525-01. The late model trucks use cross over steering (Drag link is attached to the knuckle and does not attach to the Tie Rod), Synergy Part # 8725-01. Please check what style you have before ordering.
Benefits:
Improves strength and steering feel and eliminates any chance of bending
Offers a more direct connection to the road compared to stock; no more bent drag links and constantly having to align your vehicle
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
Eliminates unwanted drag link flop
Drag Link length adjustable on the vehicle
Compatible with stock wheels and tires
Features:
Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 inch shank
Single Plane tie rod end used on the T-connection side to prevent unwanted drag link flop
Drag Link is CNC formed from 1.50 inch x .250 wall DOM tubing
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end
Min collapsed length: 39.13"
Max extended length: 41.50"
Includes:
(1) 8567-11 Ram drag link
(1) 4133-L Ram tie rod end
(1) 4160-L Ram single plane tie rod end
(1) Adjuster sleeve
(2) Pinch Bolts and hardware
Notes:
Replacement Tie Rod Ends:
(1) 4133-L
(1) 4160-L
Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components (TRE's and Adjuster Sleeve)
Installation Instructions
