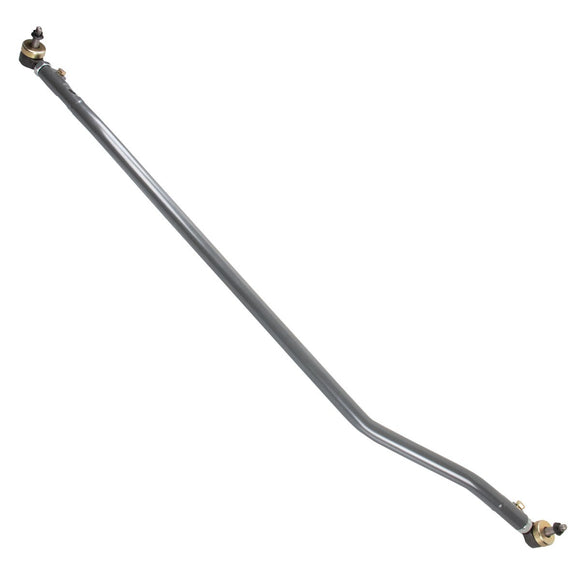

Synergy 94-99 Dodge Ram 1500/2500/3500 4x4 Heavy Duty Tie Rod

2435499 The Synergy Heavy Duty Tie Rod is a larger and stronger, bolt-on replacement for the stock tie rod. No drilling or reaming is required. It uses the updated factory T-style steering design to eliminate toe-change caused by Y-style steering. Using the factory T-style steering design also results in no induced bump steer inherent with most aftermarket "cross over" steering kits. When combined with the heavy duty drag link, steering stabilizer mount kit, and Synergy tuned IFP stabilizer (6401-01) there is not a better steering kit on the market!
Fitment:
Part #Description
8568-031994-1999 Dodge Ram 1500 / 2500 / 3500 4x4
8568-022000-2002 Dodge Ram 2500 / 3500 4x4, 2000-2001 Dodge Ram 1500 4x4
Benefits:
Improves strength and steering feel and eliminates any chance of bending
Offers a more direct connection to the road compared to stock; no more bent drag links and constantly having to align your vehicle
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
Tie Rod is bent to clear sway bar mounts and steering pitman arm
Provides 2" of additional ground clearance from stock tie rod
Tie rod ends include low misalignment "wobble stopper" grease boots to prevent unwanted Tie Rod "flop"
Lengths are adjustable on the vehicle
Compatible with stock wheels and tires
Features:
Made from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength - (200%) stronger than stock tie rod
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Notes:
Replacement Tie Rod Ends
2000-2002 Trucks: 4134-L x 2
1994-1999 Trucks: 4136-L x 2
Recommended Fox Steering Stabilizers:
IFP - Internal Floating Piston (6401-01),
TS - Through Shaft (6402-03),
ATS - Advanced Through Shaft (6403-03)
8568-03 uses 8568-11 steering stabilizer clamp
8568-02 uses 8568-10 steering stabilizer clamp
Installation Instructions
FOURWHEELER.COM - How-to: SYNERGY STEERING FOR HEAVY-DUTY RAM TRUCKS
