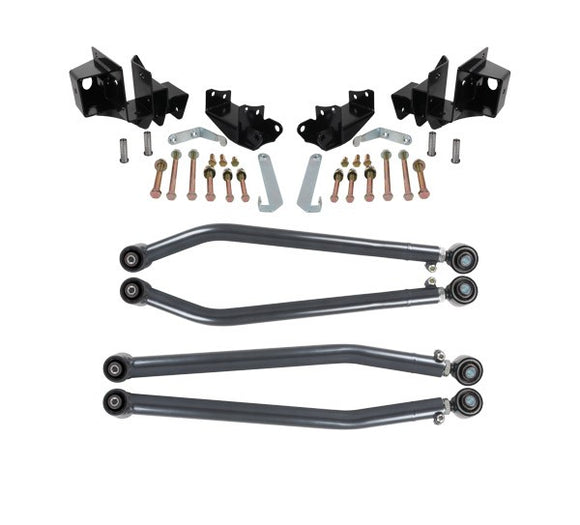

Synergy 03-13 Ram 1500/2500/3500 4x4 Long Arm Upgrade Kit

2439913 The Synergy Long Arm Kit is designed to improve your trucks suspension geometry while off-roading. Shorter control arm angles are hard on a vehicle’s suspension components which leads to poor vehicle handling, limited suspension travel and an overall bumpy ride as the shocks produce a choppy movement as you drive. By using the Synergy long arm kit an better angle is achieved, which offers more range of motion and doesn’t put undue stress on the truck’s suspension components.
Fitments:
2006-2008 Dodge Ram 1500 Mega Cab 4x4
2003-2013 Dodge Ram 2500 4x4
2003-2013.5 Dodge Ram 3500 4x4
Warning: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages
Benefits:
The Synergy Long Arm kit was designed and engineered from the ground up using a synergistic approach to maximize the Dodge 4x4 truck's on & off road performance
Long arm kit was designed using OEM CAD files for a perfect fitment and enhanced vehicle drivability
Kit can be installed on anything from a completely stock truck to a 6" lift and 12" stroke 3.0" diameter shocks.
Features:
Lower control arms are manufactured from high quality crush resistant 2.0" X .250 Wall 1026 DOM tubing
Upper control arms are manufactured from high quality 1.75 x .188 Wall 1026 DOM tubing
Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy double adjuster sleeve & pinch bolt assembly allows for easy adjustment of control arms without removal from vehicle to provide for easy, perfectly adjusted alignments
Synergy Dual Durometer Teflon lined bushings are assembled in control arm assemblies for extended performance & minimized road vibration
100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Includes:
8581 - Long Arm Bracket (Pair)
8583-04 - Front Lower Control Arms (Pair)
8585 - Front Upper Control Arms (Pair)
Notes:
Upgrading to long arms requires removal of the stock control arm brackets at the frame
To prevent front tires from rubbing the control arms at full steering lock, we recommend the following wheel/tire combinations:
Most* 37 inch tires - wheels must have no more than 4.5 inches of backspacing
Most* 40 inch tires - wheels must have no more than 3.75 inches of backspacing
* Same size tires will dimensionally vary from manufacturer to manufacturer.
Welding on long arm brackets to frame is recommended for a cleaner install.
8565 Cam Bolt Eliminators recommended for increased strength and extended bushing life
Installation Instructions
How To:Synergy Long-Arm Conversion for Heavy-Duty Rams, by Fred Williams
