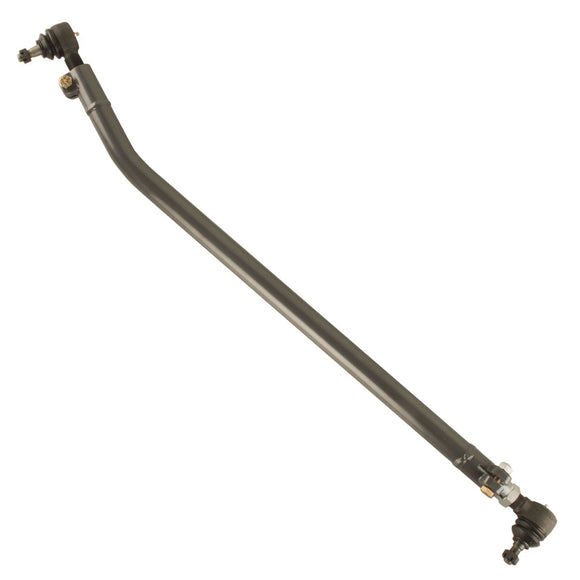

Synergy 2013+ Ram Heavy Duty Drag Link

2484016 The Synergy Ram Heavy Duty Drag Link has all new design with components specific to the new radius arm Ram Truck platform. It is a direct bolt-in replacement for the stock drag link for an immediate upgrade in steering feel, stiffness, and strength. The drag link is made from high quality DOM steel tubing for maximum strength. It features a single plane tie rod end on the pitman arm side which eliminates drag link flop. You will not find a better drag link on the market!
Fitments:
2014+ Ram 2500 / 3500 4x4
2014+ Power Wagon
Benefits:
Improves strength and steering feel and eliminates any chance of bending
Offers a more direct connection to the road compared to stock; no more bent drag links and constantly having to align your vehicle
Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
Eliminates unwanted drag link flop
Drag Link length adjustable on the vehicle
Compatible with stock wheels and tires
Features:
Drag Link bolts right into the factory mounts with no additional wheel requirements
No factory drag link components need to be reused
Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 inch shank
Single Plane tie rod end used on the pitman arm side to prevent unwanted drag link flop
Drag Link is CNC formed from 1.50 inch x .250 wall DOM tubing
Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment
100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end
Min collapsed length: 39.13"
Max extended length: 41.50"
Includes:
(1) 8701-01 Ram drag link
(1) 4160-L Ram single plane tie rod end
(1) 4134-L Ram tie rod end
(1) Adjuster sleeve
(2) Pinch Bolts and hardware
Notes:
Replacement Tie Rod Ends:
(1) 4134-L (Passenger)
(1) 4160-L (Driver)
Synergy High Performance Grease recommended (4119) to be used with all Tie Rod Ends
Synergy Premium Copper Infused Anti-Seize (4118) to be used with all threaded components (TRE's and Adjuster Sleeve)
